M300-3241096

5+5 Pos. Male DIL Cable Housing, No Jackscrews

3.00mm Pitch High-Reliability Connector - M300

Order Sample

Add to Favorites

Loading… Check availability

6 similar products View products

Traceparts account required

Product Description

Double Row Polarized Male Housing, without jackscrew fixings, with rear potting area – 10 contact (5+5).
Contacts to be purchased separately – use with crimp contacts M300-1010045 or M300-1020045.
For complete pin numbering or pin out information, see Component Specification C048XX.

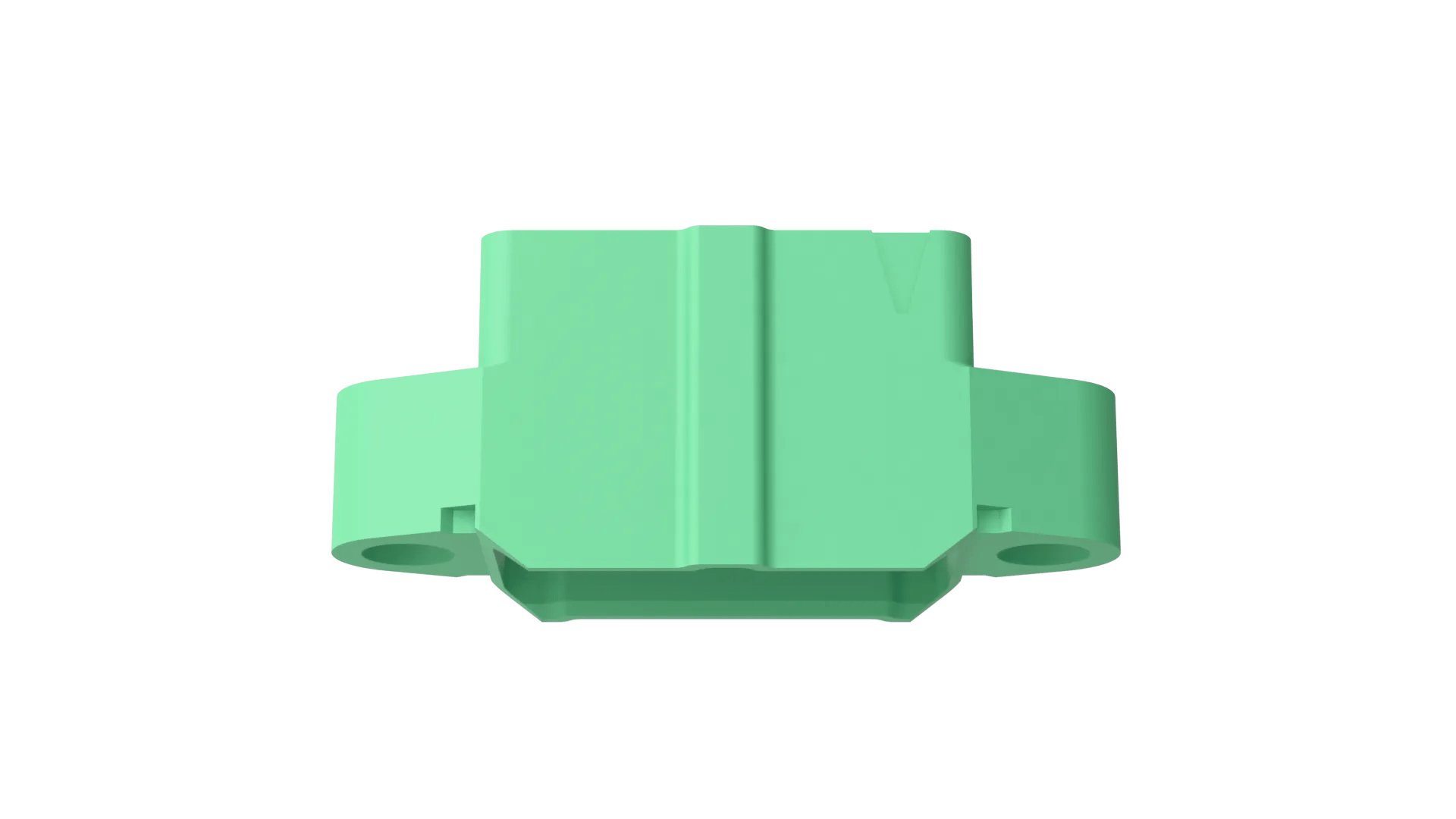

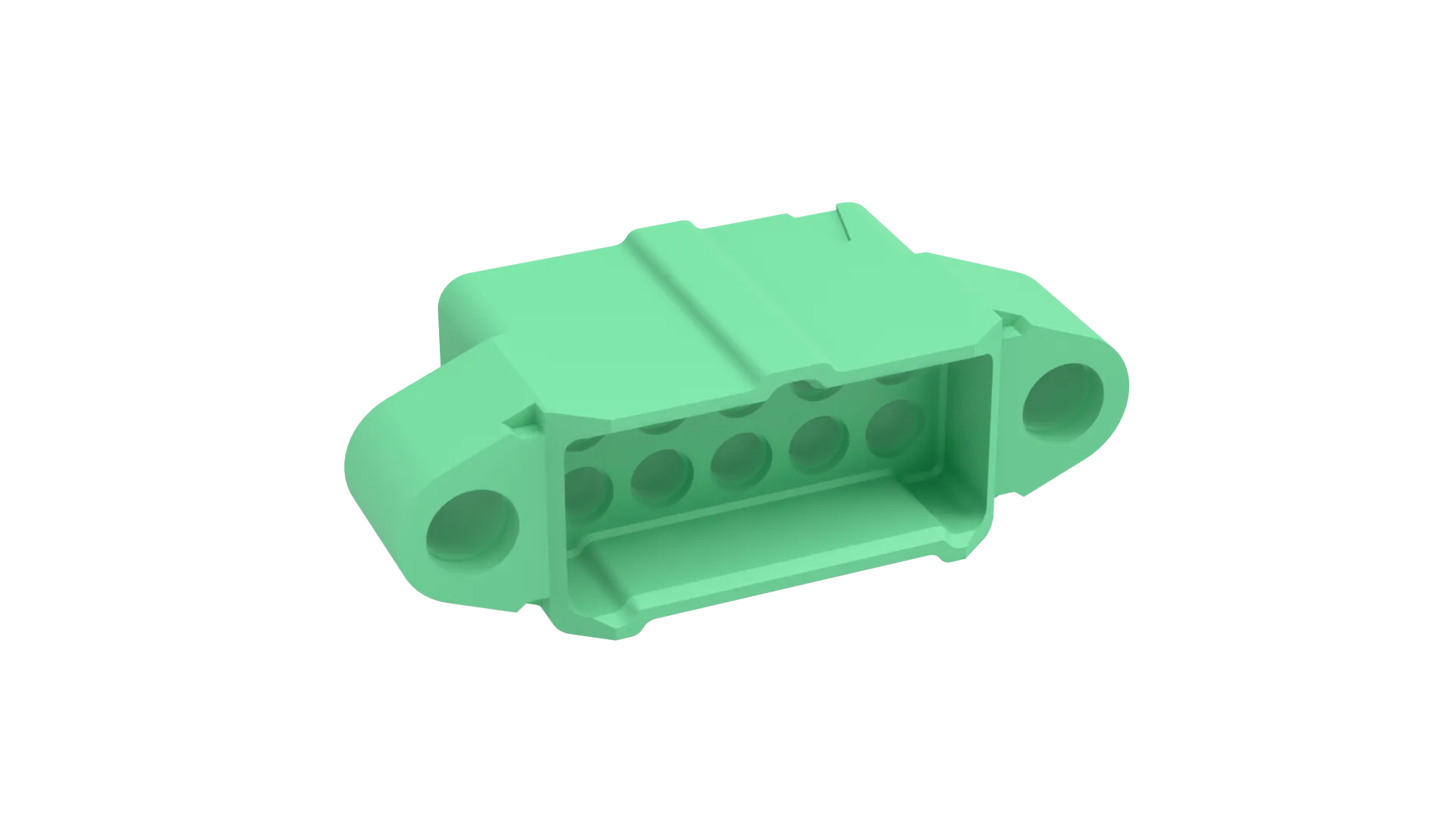

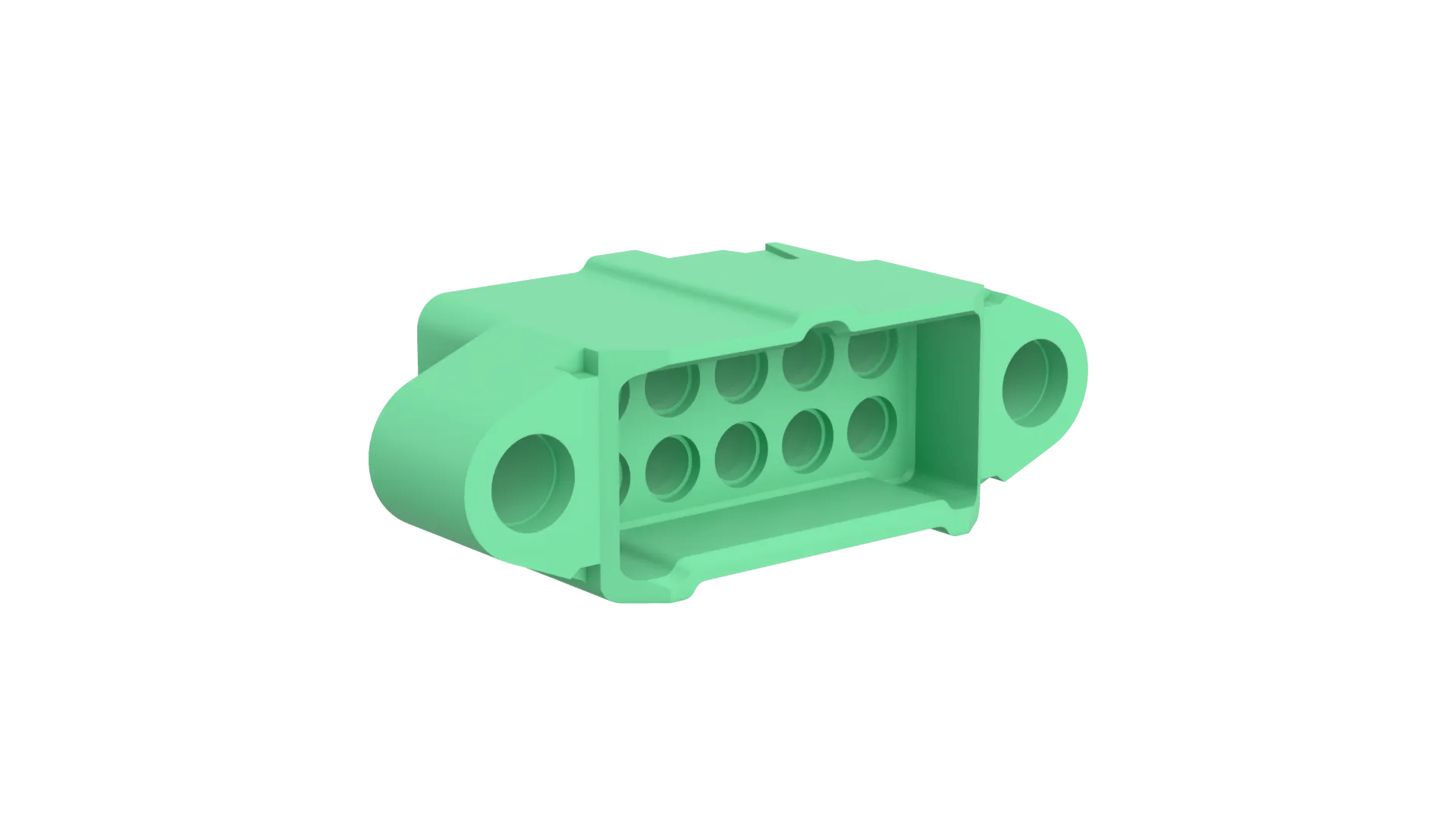

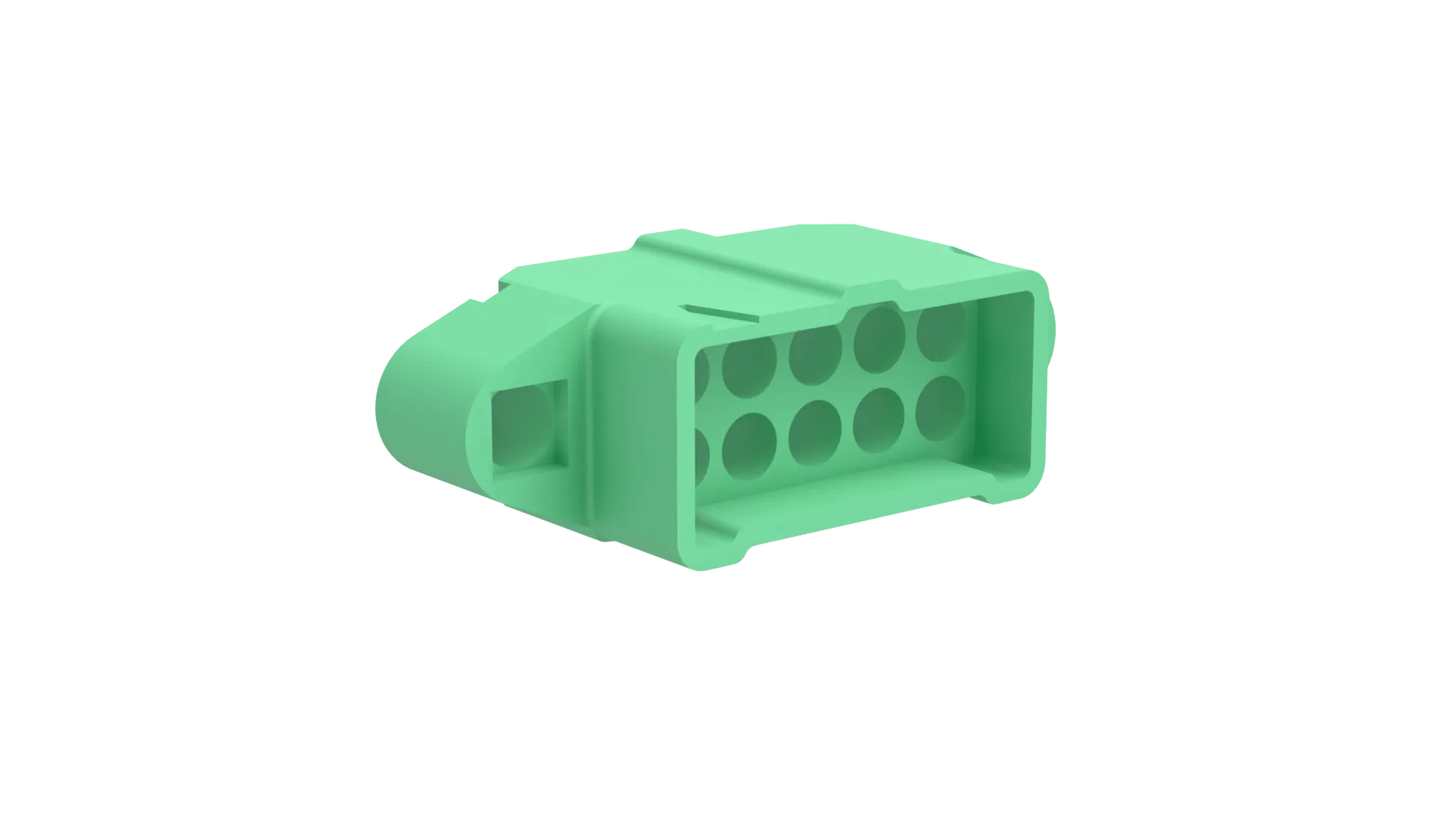

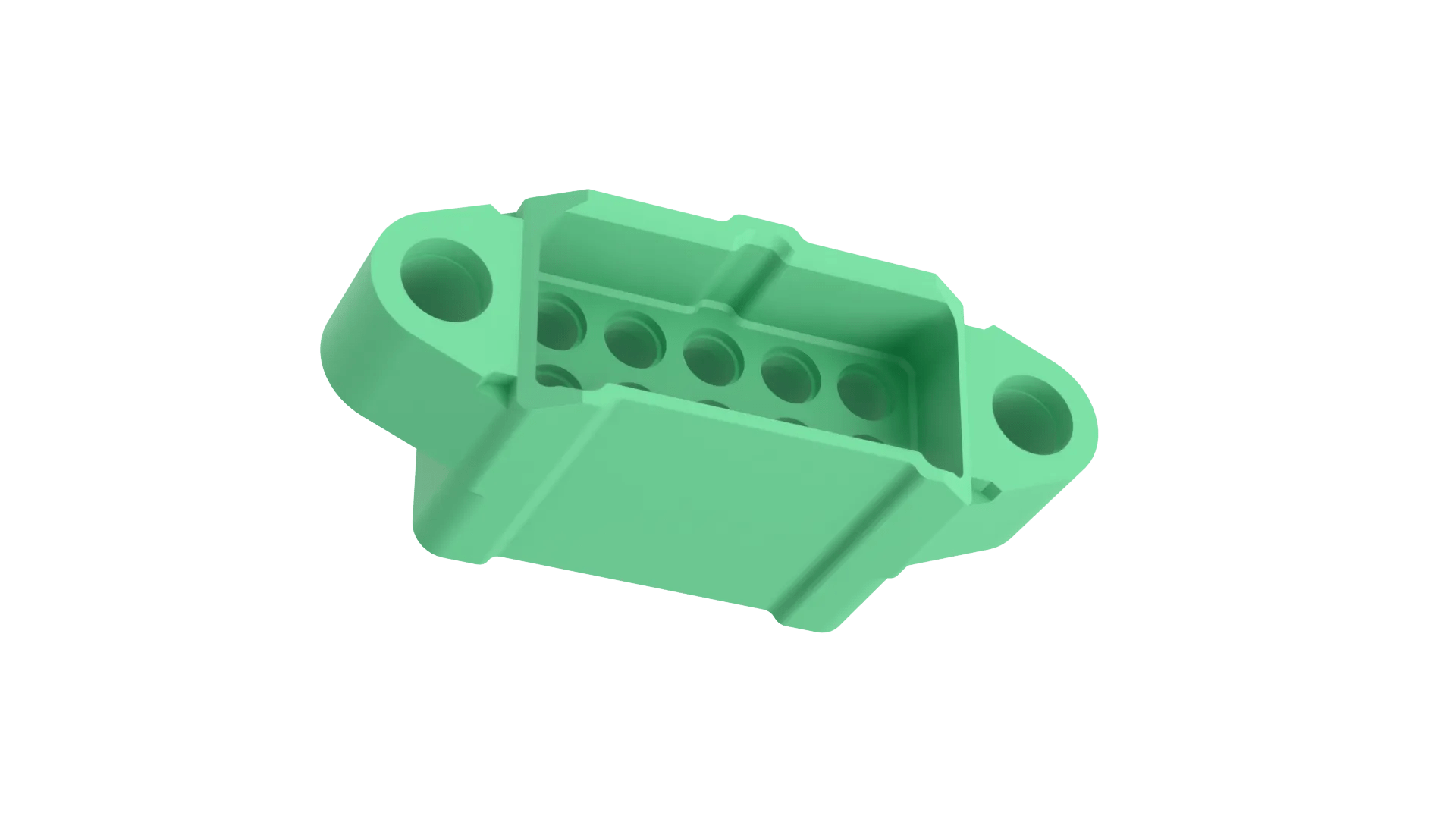

M300-3241096 - 5+5 Pos. Male DIL Cable Housing, No Jackscrews

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø1mm

Current Rating:

10A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Style of Jackscrews:

None fitted

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

1.386g

Overall Dimensions (L x W x D) in mm:

27.30 x 9.00 x 11.90

Mating Profiles:

Catalog page - M300 Mating Profiles, Pin Numbering
