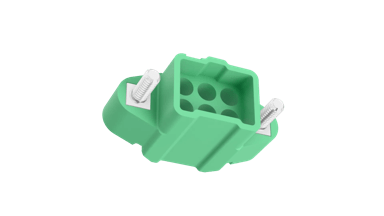

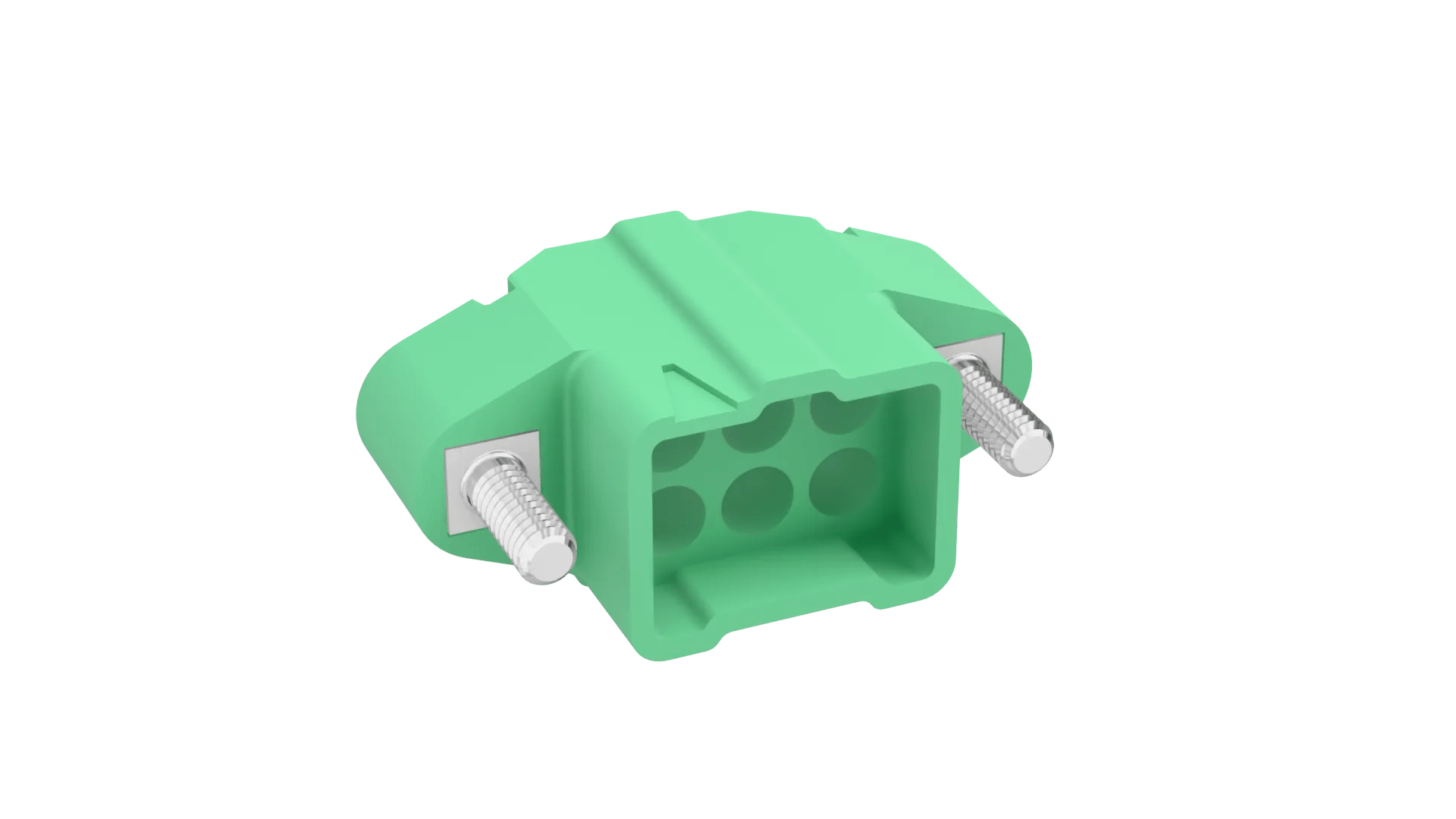

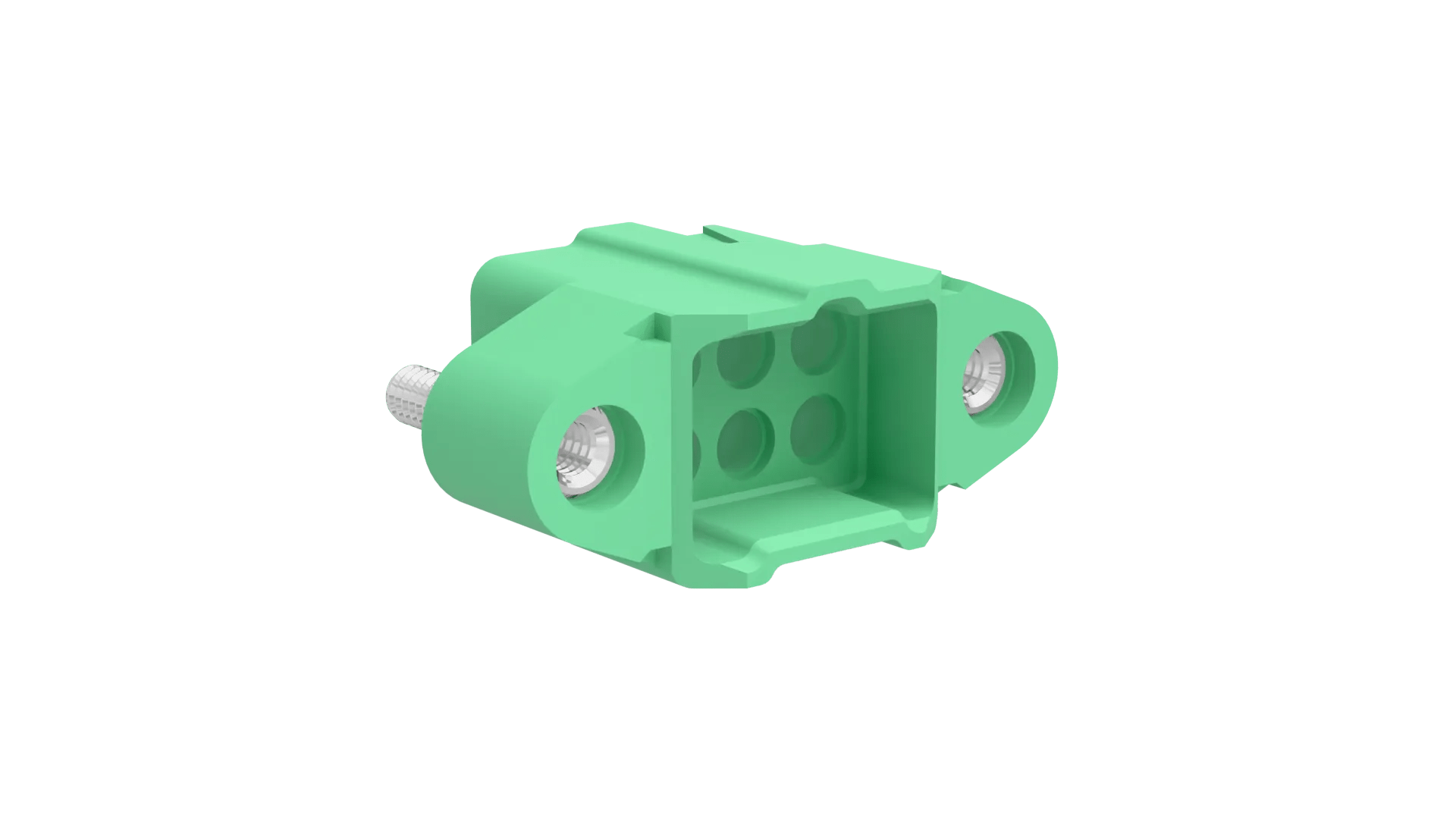

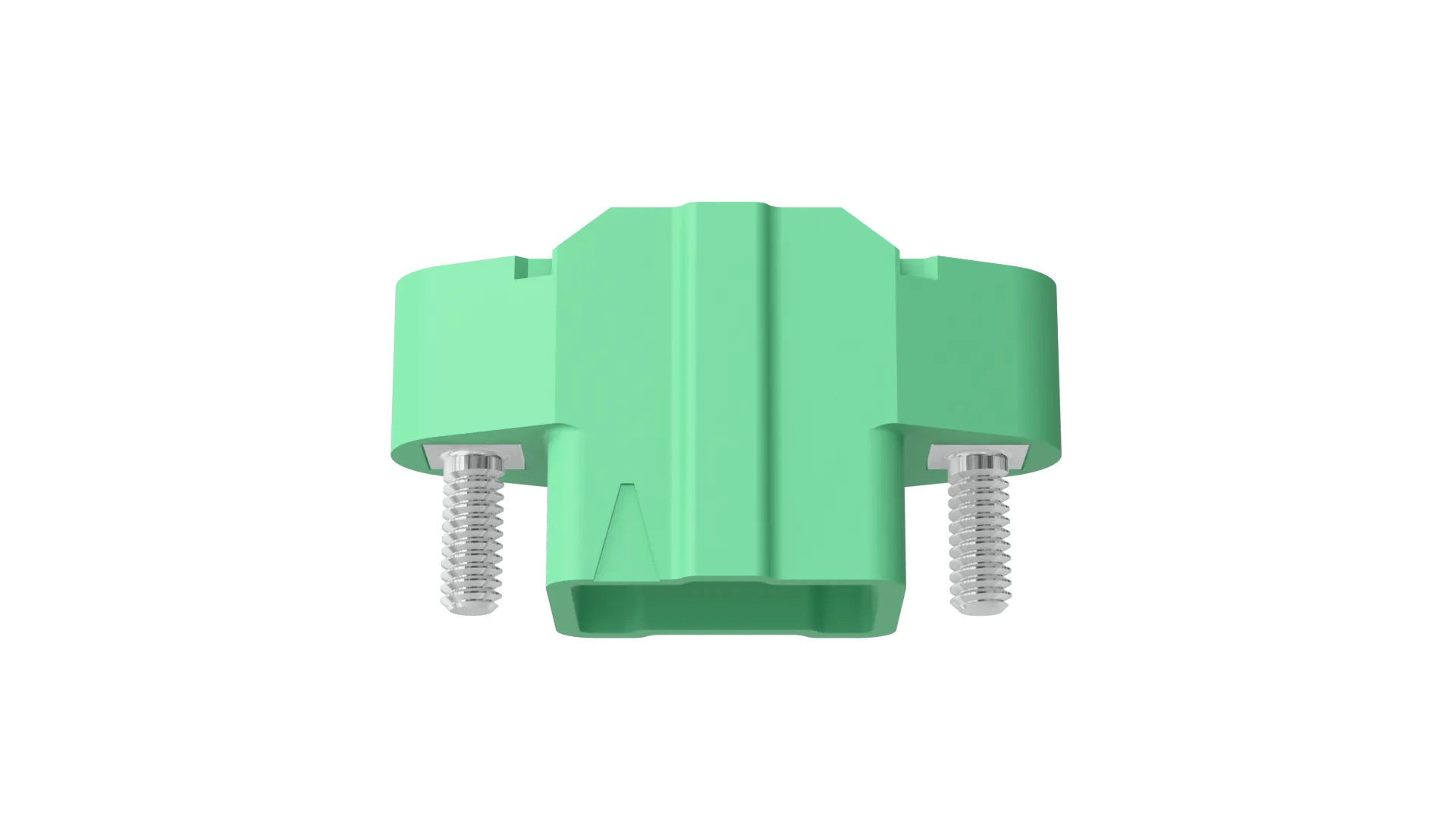

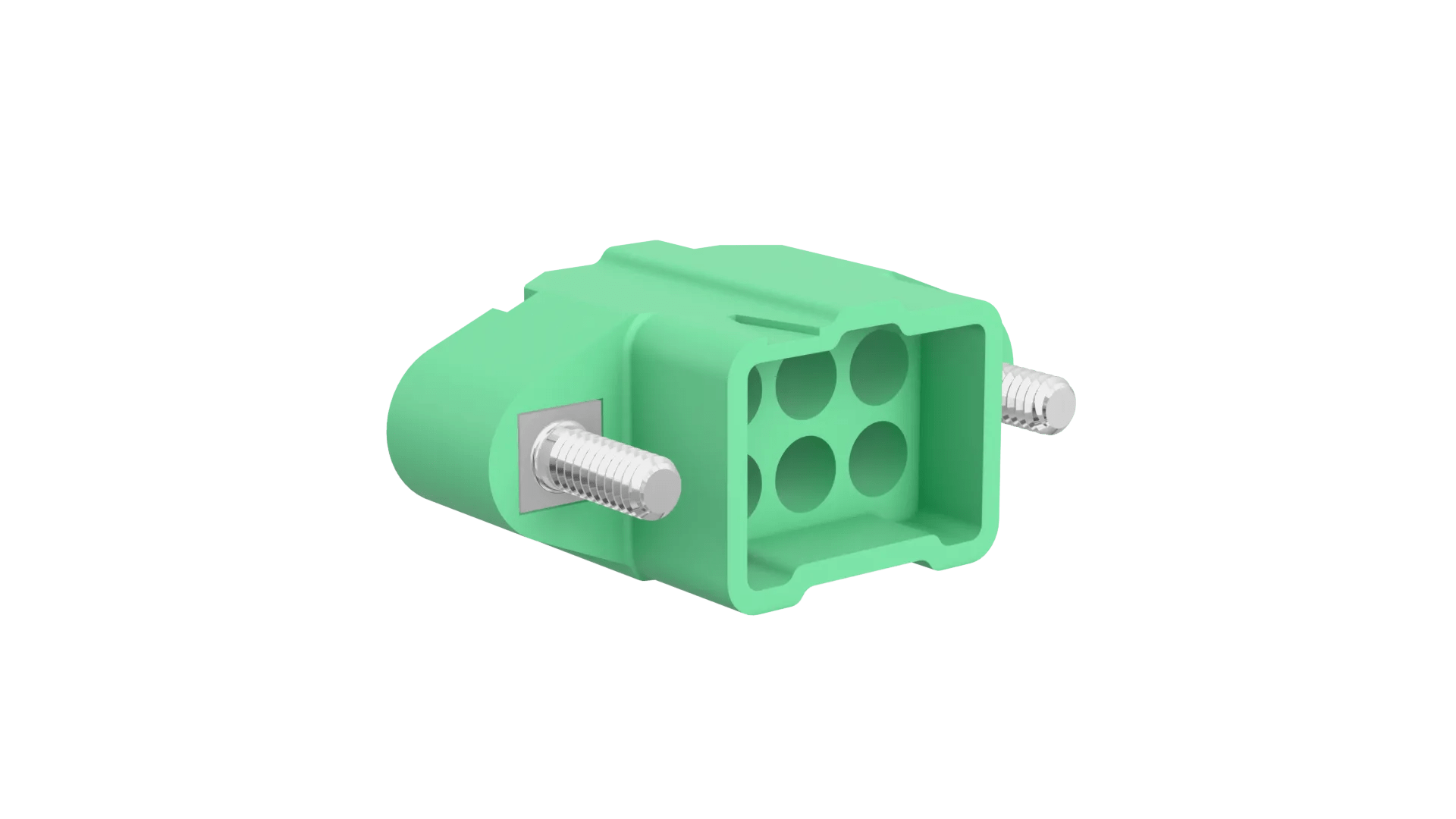

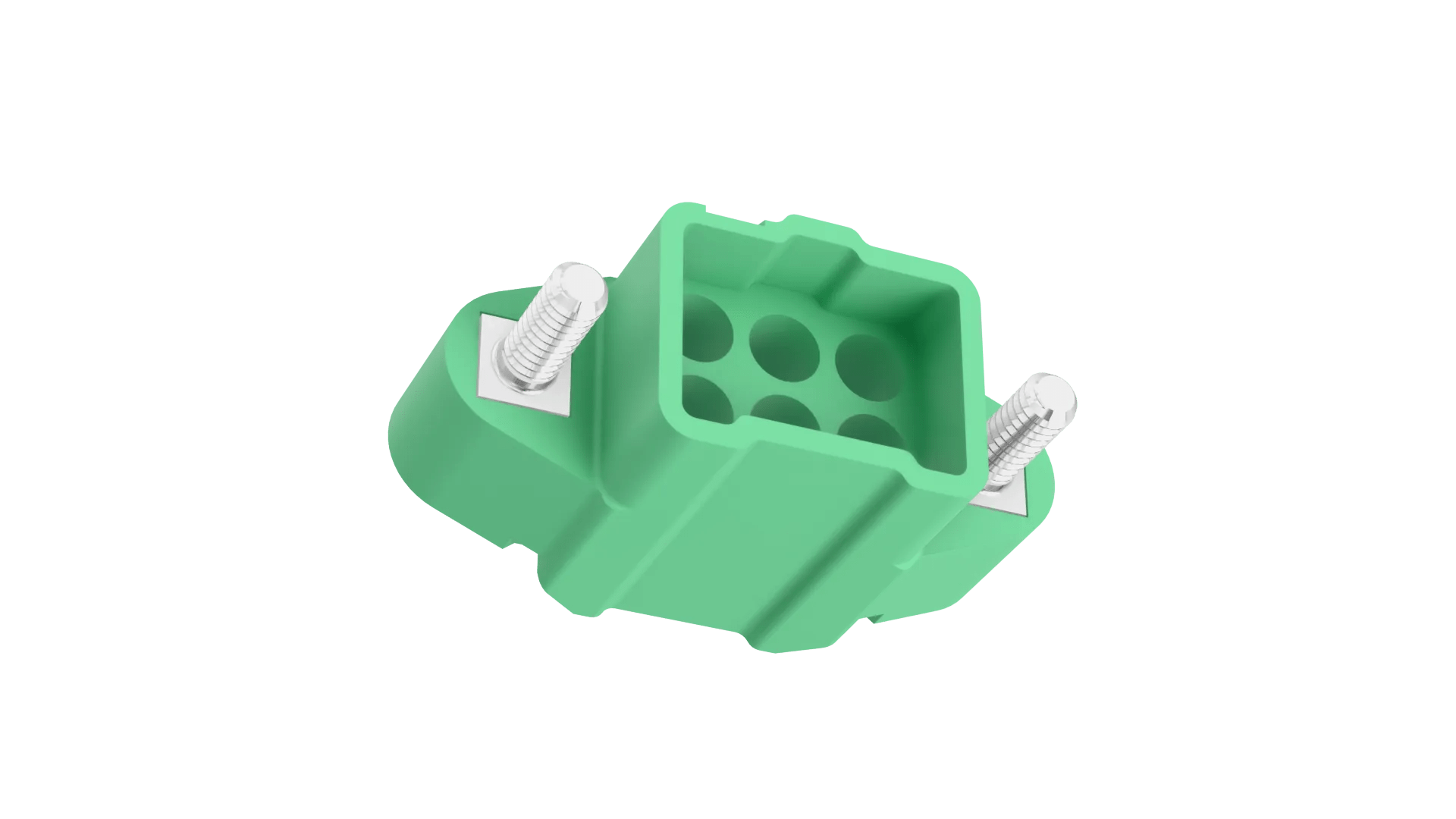

M300-3240696M2

3+3 Pos. Male DIL Cable Housing, Jackscrews

3.00mm Pitch High-Reliability Connector - M300

Add to Favorites

Technical Details

Specification

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø1mm

Current Rating:

10A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Style of Jackscrews:

Internal Thread Jackscrew with Front Panel Mount Stud (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.615g

Overall Dimensions (L x W x D) in mm:

21.30 x 9.00 x 12.00

Thread Size:

M2

Availability

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Currently made to order*

* Please request minimum quantities, lead times and pricing from an authorized distributor.

Questions & Answers Ask a Question

Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of M80-2130000B (slotted circular nut), or M80-2430000B (hexagonal nut).

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).

I can see the current rating – what is the maximum voltage rating?

The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.
