Home > M300-1020045
Active

M300-1020045

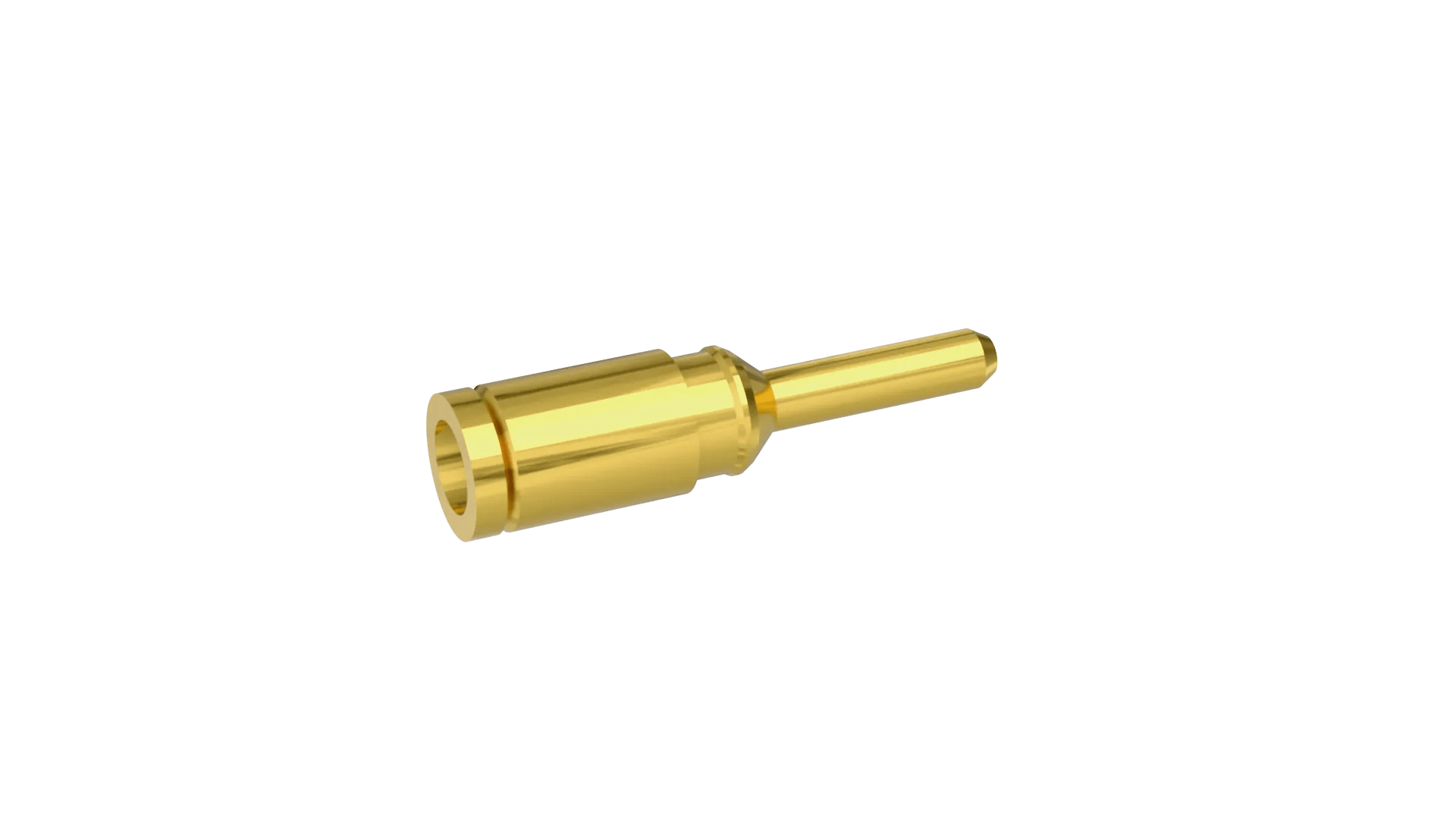

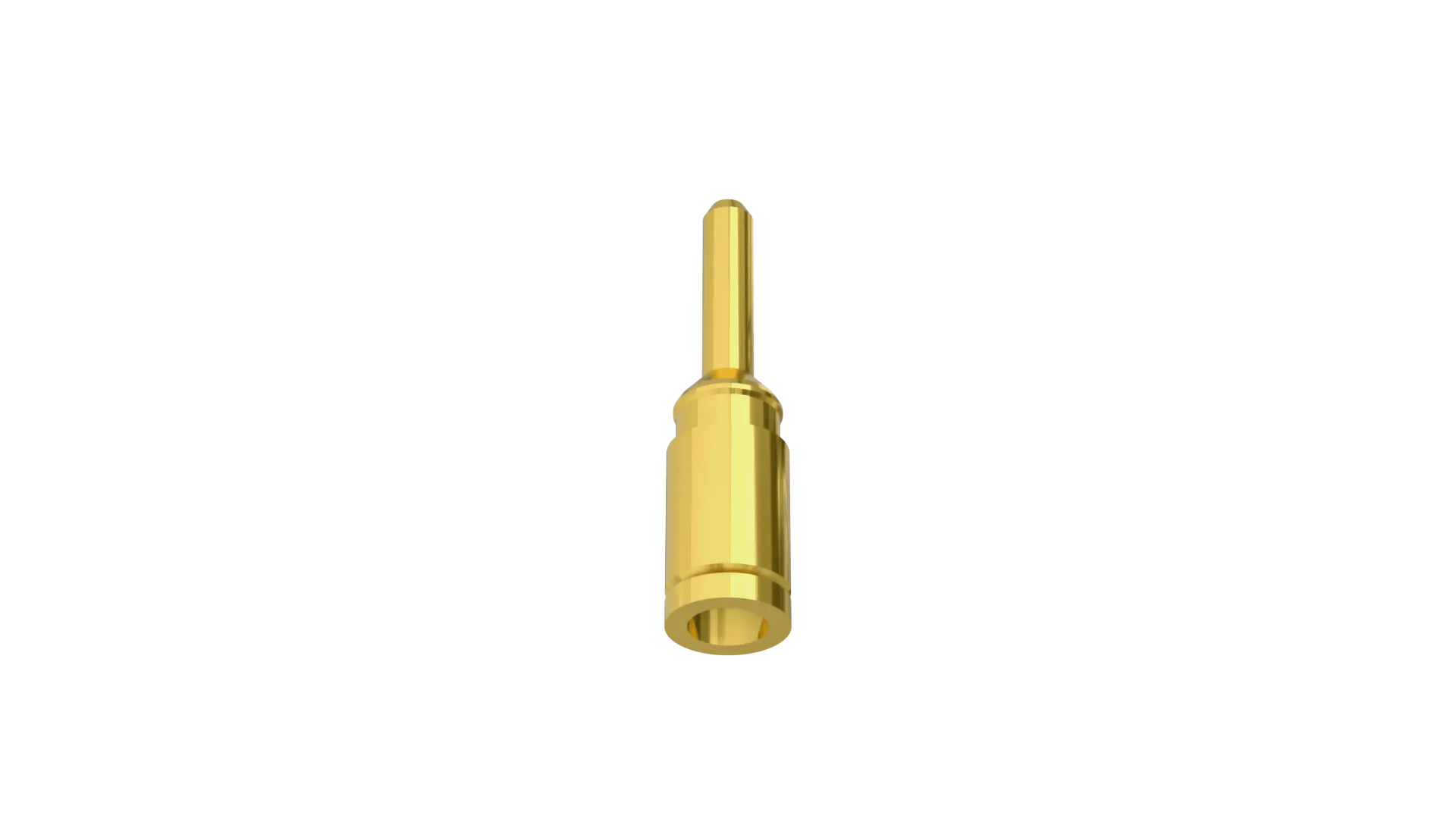

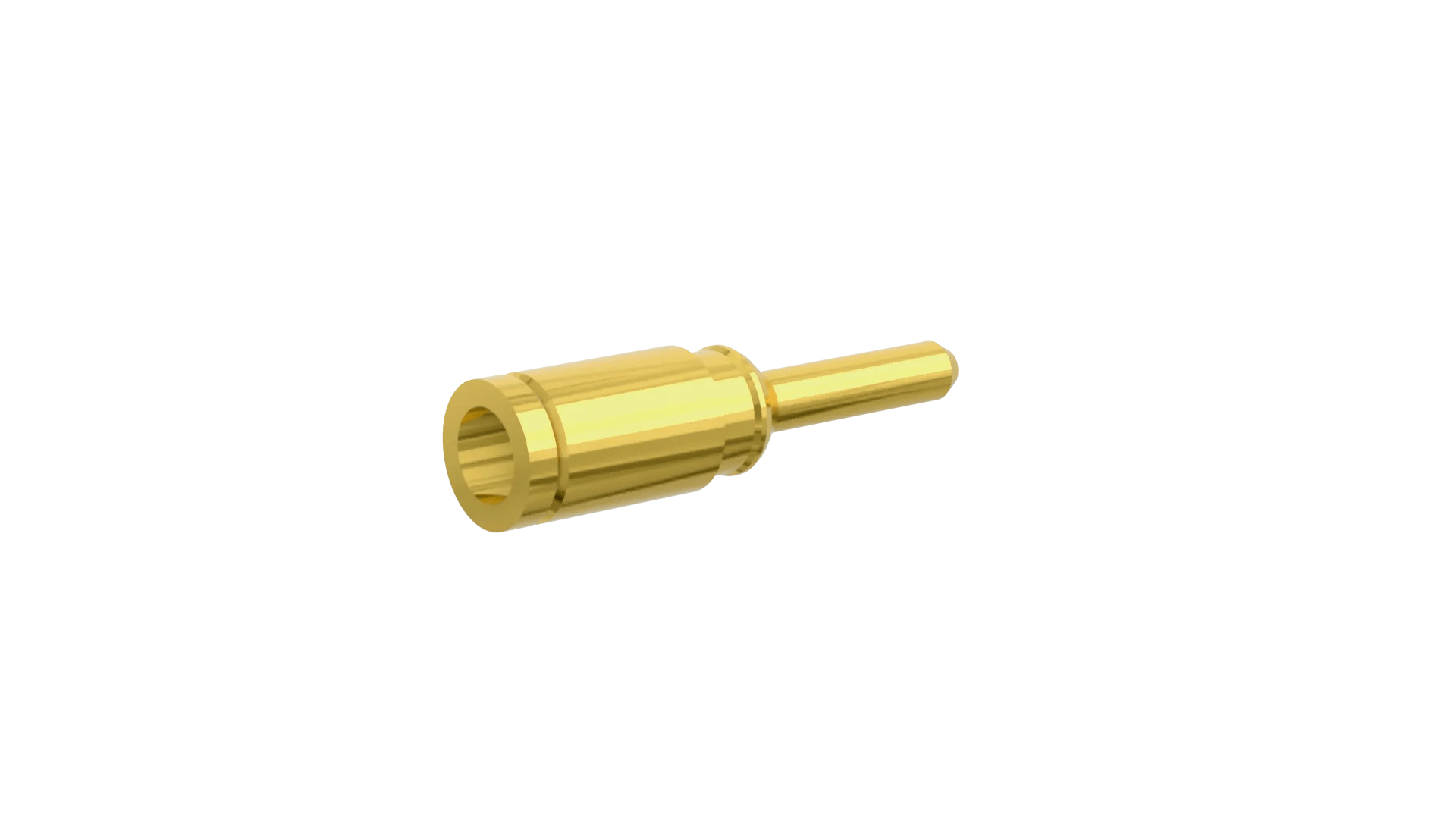

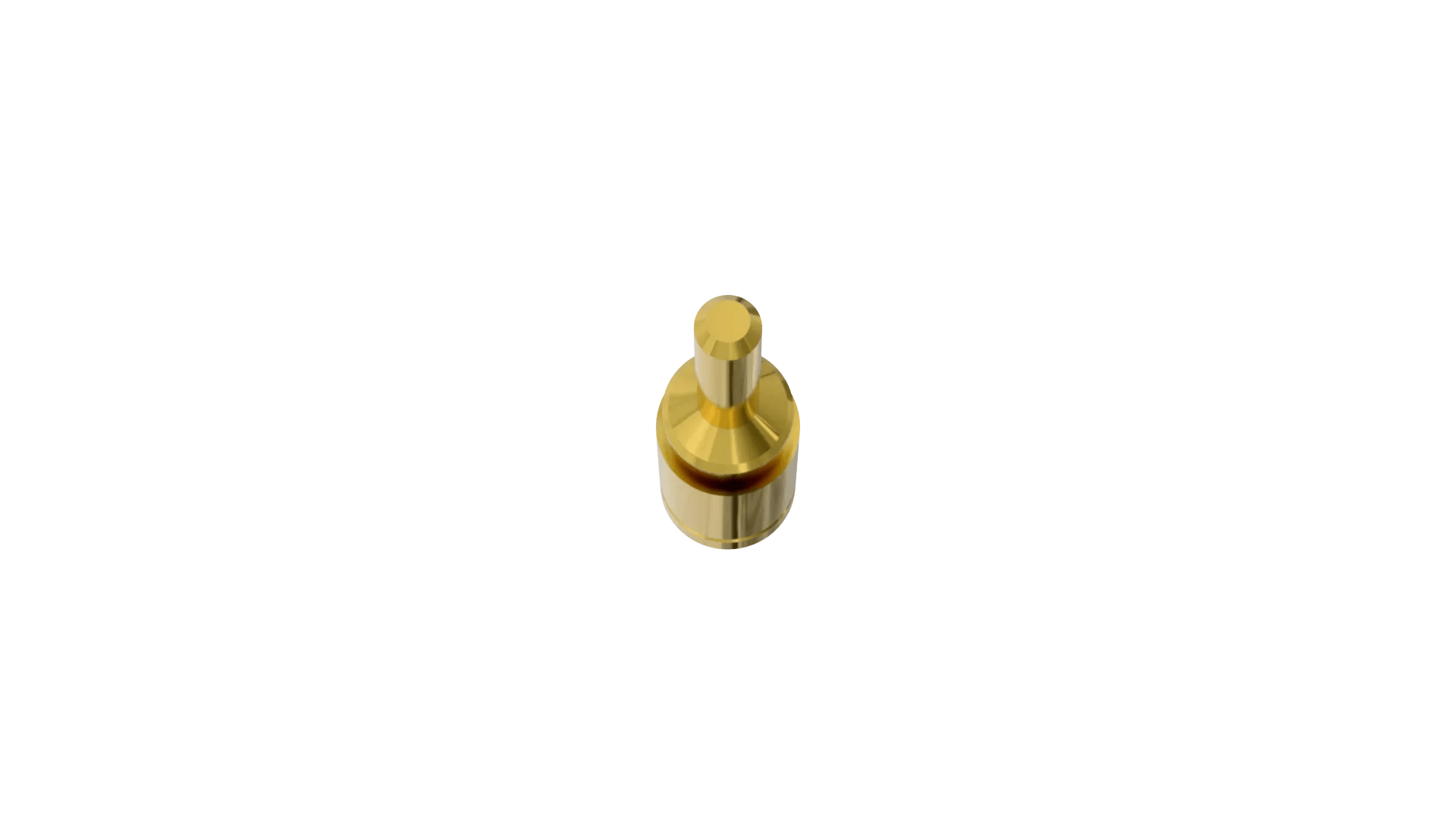

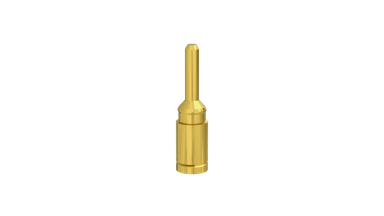

Male 22AWG Crimp Contact, loose

3.00mm Pitch High-Reliability Connector - M300

Add to Favorites

Technical Details

Specification

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22AWG

Mating Pin Size:

Ø1mm

Current Rating:

5A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.157g

Overall Dimensions (L x W x D) in mm:

9.35 x Ø2.33

Availability

10,472 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 8148
Distributor Newark
Location USA
Quantity (Updated Daily) 613
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 553
Distributor Anglia
Location Europe
Quantity (Updated Daily) 466
Distributor Powell Electronics
Location USA
Quantity (Updated Daily) 368
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 324

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M300-102.pdf

ZIP

M300-1020045 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C048XX Component Specification - M300 Series (3.00mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT043 - M300 Series - General (Electrical, Mechanical and Environmental)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M300-1020045 product

INSTRUCTION SHEETS

PDF

Product Training Module - Introduction to the M300 connectors, 3mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

PDF

IS-40 - Z300-902 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

3D PDF file - M300-1020045_3D.pdf

PDF

Catalog page - M300 Male Crimp Contacts

PDF

Catalog page - M300 Specification

PDF

Catalog page - M300 Mating Profiles, Pin Numbering

PDF

Catalog page - M300 Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona

PDF

Product Summary - M300 Series High-Reliability Connectors

PDF

Plating thickness on M300 contacts
