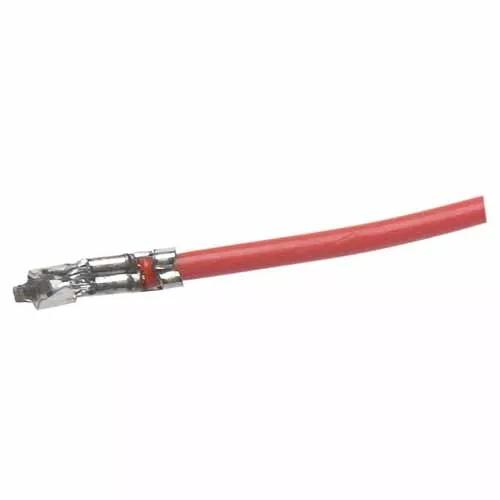

Female Contact with 26 AWG wire, 150mm, double-end

BBi

M30-9040099

Female Contact with 26 AWG wire, 150mm, double-end

1.25mm (0.049") Pitch PCB Connector - M30 Cable-To-Board

  • Single Pre-Crimped Contact, Female-to-Female with red 26 AWG cable, 150mm (6") long.

  • Manufactured with the M30-1050046 crimp contact. Tin finish on contact area.

  • Use with crimp housings M30-110 series.

View Technical Details

Out of Stock

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Environmental Compliance

Technical Details

Product Characteristics

  • Mating Pin Size:

    0.35mm square

  • Connector Orientation:

    Straight

  • Country of Origin:

    TW

  • Number of Signal Contacts:

    1

  • Operating Temperature:

    -25°C to +85°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    1A per contact

Materials

  • Finish / Plating on Contact Surface:

    100% Tin over Nickel

  • Base Material of Contact:

    Phosphor Bronze

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    100% Tin over Nickel

Dimensions

  • Contact Pitch:

    1.25mm (0.049")

  • Weight:

    0.368g

  • Dimensions:

    150.00 x 1.60 x 1.00

  • Wire Size:

    26 AWG

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - M30-904-907.pdf

  • C025XX Component Specification - M30 Series (1.25mm pitch PCB connectors)

Product Information

  • Catalog page - M30 Connectors Specification + Mating Profiles

  • Product Training Module - Overview of the Fine Pitch connectors + 1.25mm pitch and smaller

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Cable Products from Harwin

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for M30-904 to 907 series

  • RoHS - M30-9040099
