1.25mm Pitch Female Crimp Contact cable assembly, 26 AWG wire, 150mm long, single ended

BBi

Traceparts account required

M30-9000099

1.25mm Pitch Female Crimp Contact cable assembly, 26 AWG wire, 150mm long, single ended


1.25mm (0.049") Pitch PCB Connector - M30 Cable-To-Board

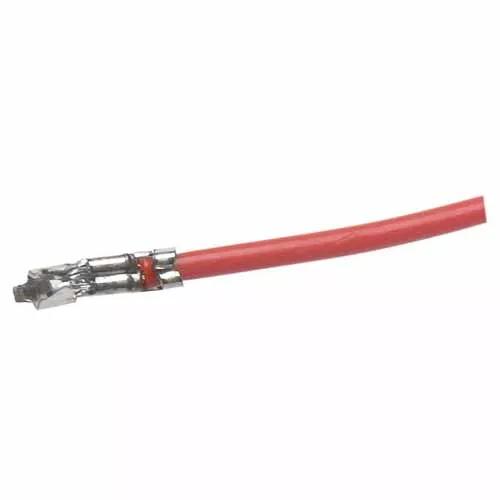

  • Single Pre-Crimped Contact, Female Single-Ended with red 26 AWG cable, 150mm (6") long.

  • Manufactured with the M30-1050046 crimp contact. Tin finish on contact area.

  • Use with crimp housings M30-110 series.
