Home > M30-6100446
Active

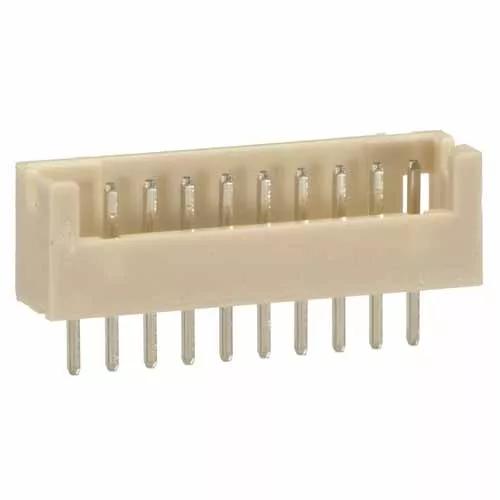

M30-6100446

4 Pos. Male SIL Vertical Throughboard Conn.

1.25mm (0.049") Pitch PCB Connector - M30 Cable-To-Board

  • Single Row Male Vertical connector, 2.3mm PC Tail with Tin finish – 4 contacts.
  • Windows for bump latches on mating connector.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.35mm square

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

4

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 66

Housing Colour:

Natural

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.098g

Overall Dimensions (L x W x D) in mm:

6.25 x 3.40 x 6.60

Height of Connector above PCB:

4.30mm

Length of Throughboard Tail:

2.30mm

Availability

5,816 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 498
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 264
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 113
Distributor Genalog
Location Europe
Quantity (Updated Daily) 87
Distributor Farnell
Location Europe
Quantity (Updated Daily) 61
Distributor Newark
Location USA
Quantity (Updated Daily) 41

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 4752

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M30-610.pdf

ZIP

M30-6100446 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C025XX Component Specification - M30 Series (1.25mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M30-610 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Fine Pitch connectors, 1.25mm pitch and smaller

OTHER DOWNLOADS

PDF

Catalog page - M30 Male Vertical Connectors

PDF

Catalog page - M30 Connectors Specification, Mating Profiles
