M30-6001046

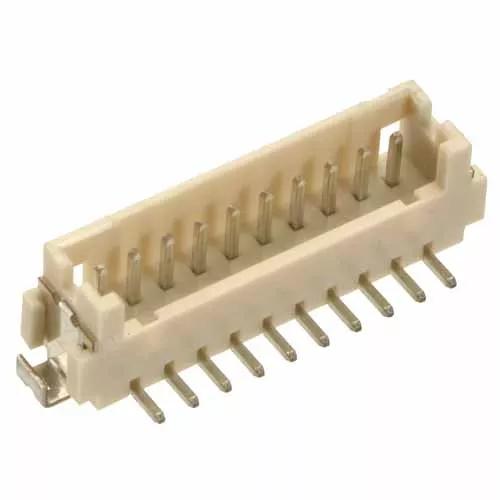

10 Pos. Male SIL Vertical SMT Conn.

1.25mm (0.049") Pitch PCB Connector - M30 Cable-To-Board

  • Single Row Male Vertical connector, Surface Mount with Tin finish – 10 contacts.
  • Surface Mount hold-down tabs, and windows for bump latches on mating connector.
  • Packaged in tubes.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.35mm square

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T/66

Housing Colour:

Natural

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.291g

Overall Dimensions (L x W x D) in mm:

17.25 x 4.90 x 5.60

Height of Connector above PCB:

4.80mm

Availability

1,821 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
