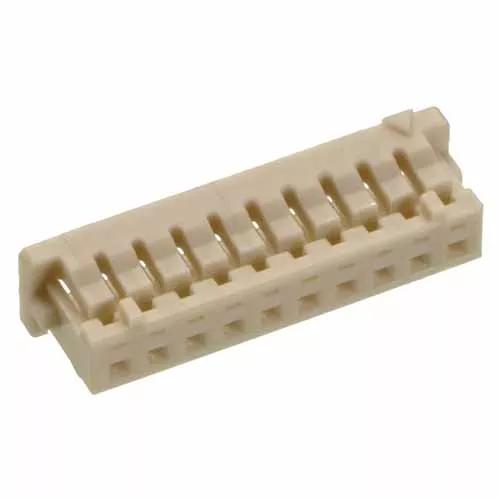

1.25mm (0.049") Pitch PCB Connector - M30 Cable-To-Board
Single Row female crimp housing - 14 contact.
Bump latches for added retention to mating connector.
Use with crimp contacts M30-1050046, M30-1060046 or pre-crimped contacts M30-90 series.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Mating Pin Size:
0.35mm square
Number of Rows:
1
Connector Orientation:
Straight
Country of Origin:
TW
Side Stackable:
No
Number of Signal Contacts:
14
Operating Temperature:
-25°C to +85°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
1A per contact
Polarised:
Yes
Cuttable:
No
Materials
Housing Material:
Polyamide (Nylon) 66
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Housing Colour:
Natural
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
0.132g
Dimensions:
19.15 x 3.20 x 4.00
Downloads
Technical Drawing / Datasheet - M30-110.pdf
C025XX Component Specification - M30 Series (1.25mm pitch PCB connectors)
Catalog page - M30 Connectors Specification + Mating Profiles
Product Training Module - Overview of the Fine Pitch connectors + 1.25mm pitch and smaller
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M30-110 series
RoHS - M30-1101400
