Active

M30-1100400

4 Pos. Female SIL Cable Housing

1.25mm (0.049") Pitch PCB Connector - M30 Cable-To-Board

Single Row female crimp housing – 4 contact.
Bump latches for added retention to mating connector.
Use with crimp contacts M30-1050046, M30-1060046 or pre-crimped contacts M30-90 series.

Add to Basket

Availability

M30-1100400 - 4 Pos. Female SIL Cable Housing

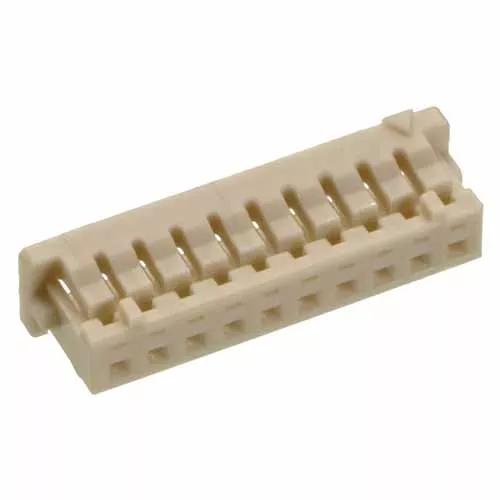

Representative image of product family

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

0.35mm square

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Housing Material:

Polyamide (Nylon) 66

Housing Colour:

Natural

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.038g

Overall Dimensions (L x W x D) in mm:

6.65 x 3.20 x 4.00

Mating Profiles:

Catalog page - M30 Connectors Specification, Mating Profiles

Availability

19,647 in stock

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

PDF

RoHS Compliant (2015/863/EU) with no Exemption required
