M30-1060046

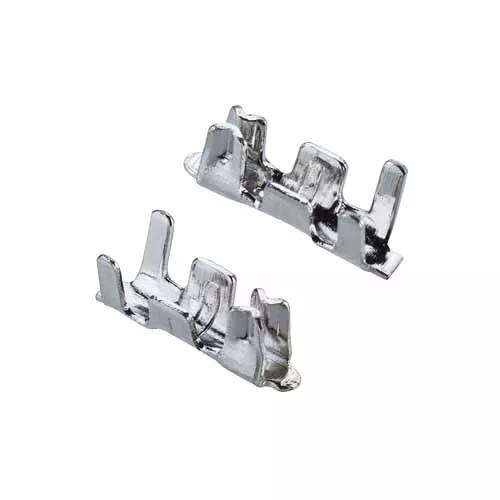

Female 26-30AWG Crimp Contact, loose

1.25mm (0.049") Pitch PCB Connector - M30 Cable-To-Board

  • Female Crimp contacts, loose, suitable for cable conductor sizes from 26 to 30AWG – Tin finish.
  • Use with crimp housings M30-110 series.
  • Also available as pre-crimped contacts: M30-90 series.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

26-30AWG

Mating Pin Size:

0.35mm square

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.026g

Overall Dimensions (L x W x D) in mm:

3.70 x 1.62 x 1.70

Availability

57,852 in stock
