M30-1050046

Female 26-30 AWG Crimp Contact, reeled

1.25mm (0.049") Pitch PCB Connector - M30 Cable-To-Board

Order Sample

Add to Favorites

Loading… Check availability

8 similar products View products

Traceparts account required

Product Description

Female Crimp contacts, reeled, suitable for cable conductor sizes from 26 to 30 AWG – Tin finish.
Use with crimp housings M30-110 series.
Also available as pre-crimped contacts: M30-90 series.

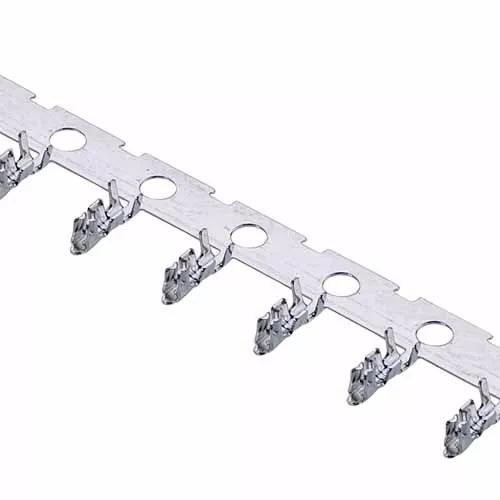

M30-1050046 - Female 26-30 AWG Crimp Contact, reeled

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

26-30 AWG

Mating Pin Size:

0.35mm square

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Reel

Individual Part Weight:

0.026g

Overall Dimensions (L x W x D) in mm:

3.70 x 1.62 x 1.70 (contact only)

Mating Profiles:

Catalog page - M30 Connectors Specification, Mating Profiles
