M22520/2-01

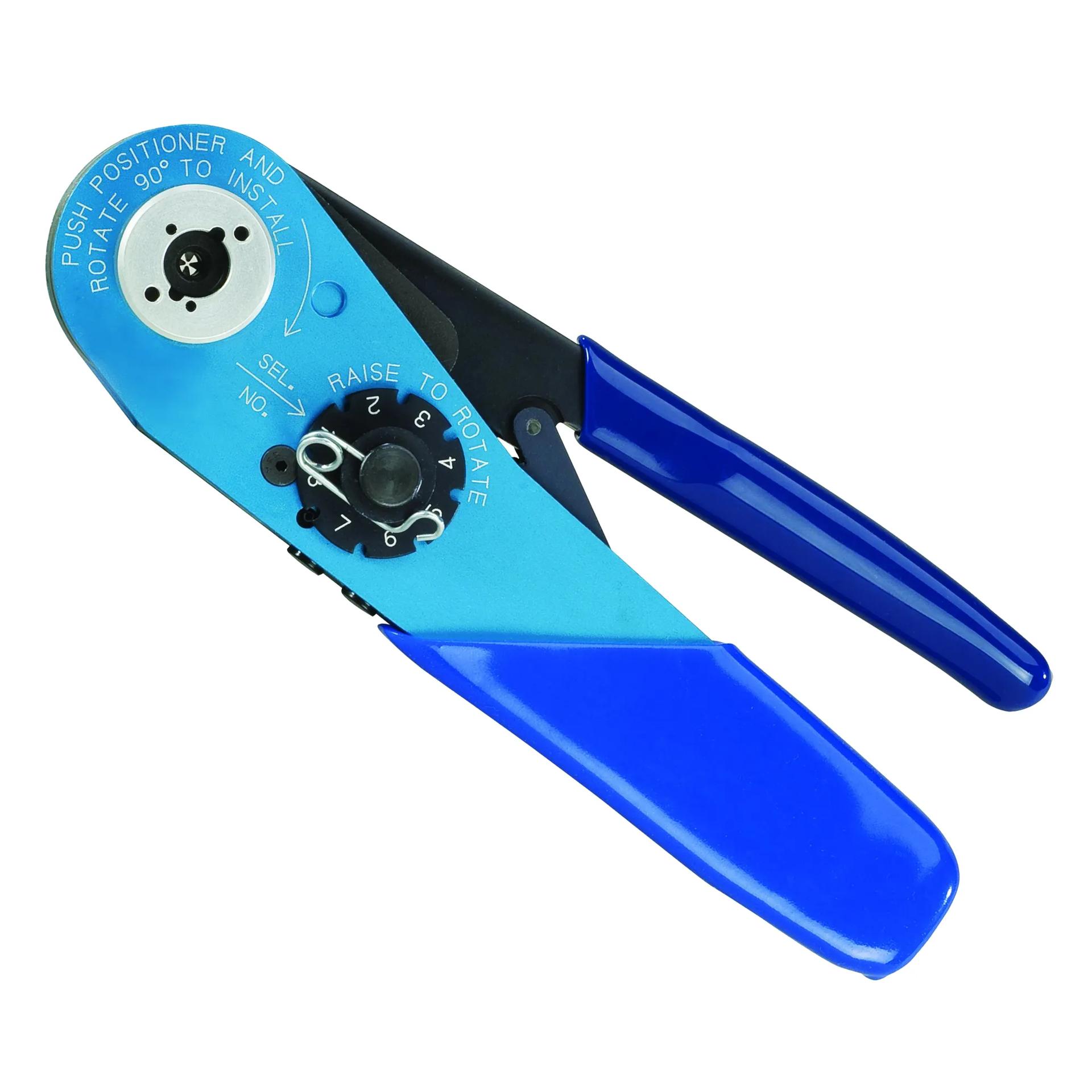

Hand Crimp Tool

Tooling

  • Hand Crimp Tool for Datamate (signal) and M300, crimps, male and female.
  • Not for use with Datamate Trio-Tek signal crimps – see Z80-255.
  • Must be used with a suitable positioner to ensure the crimps are consistently held in the right place to ensure correct crimping location. Check the Instruction Sheet IS-01 for the correct positioner.
Availability
Add to Favorites

Technical Details

Specification

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

333.4g

Overall Dimensions (L x W x D) in mm:

190.00 x 65.00 x 35.00 (in box)

Availability

185 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 136
Distributor Farnell
Location Europe
Quantity (Updated Daily) 24
Distributor Newark
Location USA
Quantity (Updated Daily) 23
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 1
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 1
