M22-7141042

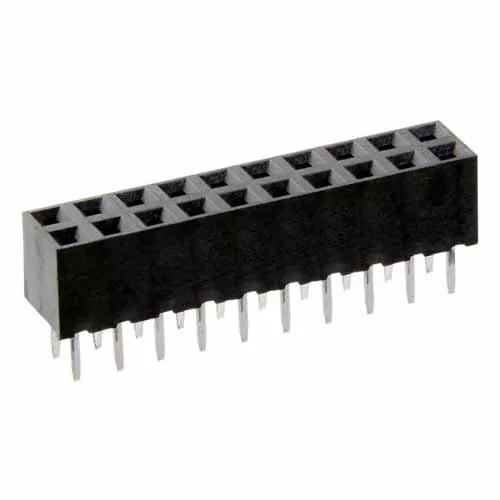

10+10 Pos. Female DIL Vertical Throughboard Conn.

2.00mm (0.079") Pitch PCB Connector - M22 Series

  • Double Row, 2.4mm PC Tail, 4.3mm connector height – 20 contacts (10+10).
  • Gold finish on contact area, Tin finish on termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.5mm square

Current Rating:

2A

Operating Temperature:

-25°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.501g

Overall Dimensions (L x W x D) in mm:

20.50 x 4.00 x 6.70

Height of Connector above PCB:

4.30mm

Length of Throughboard Tail:

2.40mm

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status170
Avnet Abacus
Europe
Status180
Farnell
Europe
Status943
Mouser Electronics Inc
Global
Status554
Newark
USA
Status853
TTI Inc
USA
Status180

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Is this connector available polarized, or are polarization plugs available separately?

There are polarizing plugs available separately for this connector – part number M22-0340000. It is listed further down the page, under “Related Products” as an accessory. To use this polarizing plug, you will also need to manually remove the associated male pin to be able to mate the connectors.

Was this answer helpful?

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M22-714.pdf

ZIP

M22-7141042 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C018XX Component Specification - M22 Series (2.00mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M22-714 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

OTHER DOWNLOADS

PDF

Product Change Notification 24-Oct-2013 - M22-713, M22-714
