M22-7131042

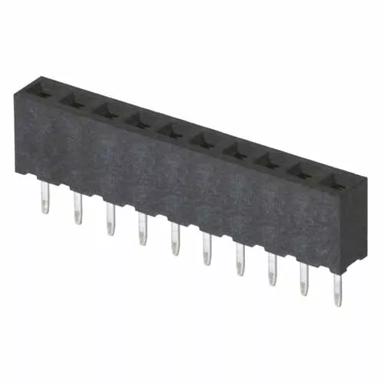

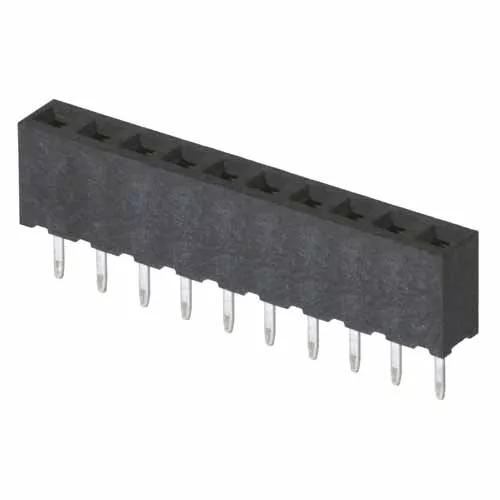

10 Pos. Female SIL Vertical Throughboard Conn.

2.00mm (0.079") Pitch PCB Connector - M22 Series

  • Single Row, 2.4mm PC Tail, 4.4mm connector height – 10 contacts.
  • Gold finish on contact area, Tin finish on termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.5mm square

Current Rating:

2A per contact

Operating Temperature:

-25°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

10

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.399g

Overall Dimensions (L x W x D) in mm:

20.50 x 2.40 x 6.80

Height of Connector above PCB:

4.40mm

Length of Throughboard Tail:

2.40mm

Availability

42,848 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 13925
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 10500
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 6895
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 3240
Distributor Farnell
Location Europe
Quantity (Updated Daily) 2801
Distributor Newark
Location USA
Quantity (Updated Daily) 2388
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 2340
Distributor Newark
Location USA
Quantity (Updated Daily) 366
Distributor Anglia
Location Europe
Quantity (Updated Daily) 353
Distributor Genalog
Location Europe
Quantity (Updated Daily) 40

Questions & Answers Ask a Question

Is this connector available polarized, or are polarization plugs available separately?

There are polarizing plugs available separately for this connector – part number M22-0340000. It is listed further down the page, under “Related Products” as an accessory. To use this polarizing plug, you will also need to manually remove the associated male pin to be able to mate the connectors.
