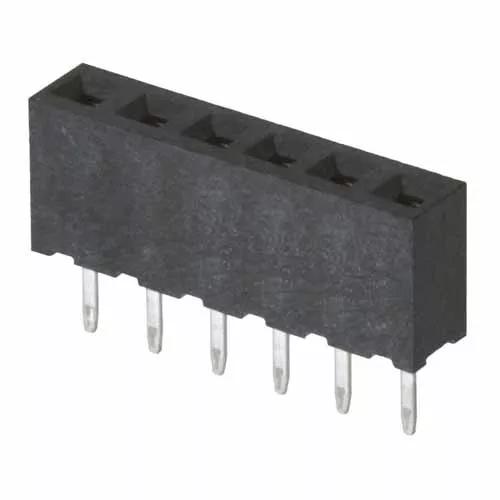

Technical Details
Product Characteristics
End Stackable:
No
Entry Style:
Top Entry
Mating Pin Size:
0.5mm square
Number of Rows:
1
Connector Orientation:
Vertical
Country of Origin:
TW
Side Stackable:
No
Number of Signal Contacts:
6
Operating Temperature:
-25°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
2A per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
No
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
LCP
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
0.239g
Dimensions:
12.50 x 2.40 x 6.80
PC Tail Length:
2.40mm
Height of Connector above PCB:
4.40mm
Downloads
Technical Drawing / Datasheet - M22-713.pdf
C018XX Component Specification - M22 Series (2.00mm pitch PCB connectors)
Outgassing data for Harwin products (plastics)
Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
Product Datasheet - INDESS range: M20 and M22 (BBi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M22-713 series
RoHS - M22-7130642
