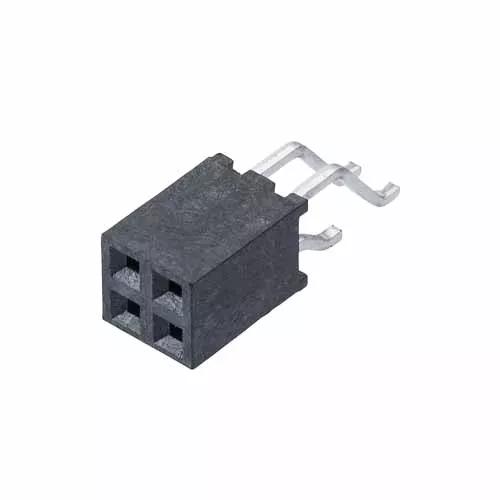

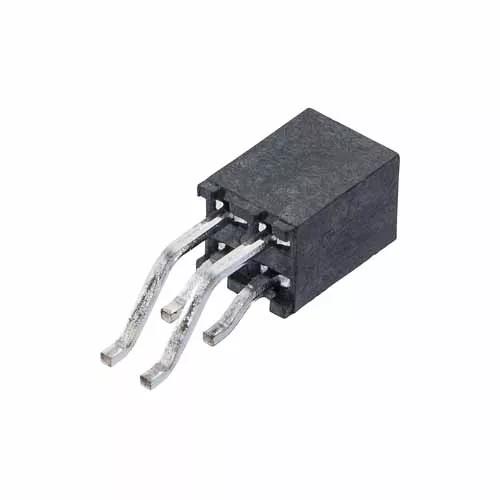

M22-6550242R

2+2 Pos. Female DIL Horizontal SMT Conn. (T+R)

2.00mm (0.079") Pitch PCB Connector - M22 Series

  • Double Row, Surface Mount Tail, 4 (2+2) contacts.
  • Gold finish on contact area, Tin finish on termination.
  • Packaged in Tape & Reel (pick and place using connector housing).
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.5mm square

Current Rating:

2A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

4

Entry Style:

Side Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.266g

Overall Dimensions (L x W x D) in mm:

4.30 x 12.45 x 4.00

Height of Connector above PCB:

4.00mm

Availability

4,996 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 2710
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2286

Questions & Answers Ask a Question

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
