M22-6361042

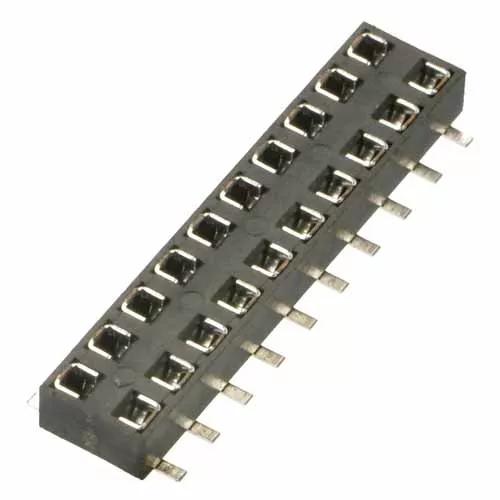

10+10 Pos. Female DIL Vertical SMT Conn.

2.00mm (0.079") Pitch PCB Connector - M22 Series

  • Double Row Surface Mount, Dual (Top and Bottom) Entry – 20 contacts (10+10).
  • Gold finish on contact area, Tin finish on termination.
  • Packaged in tubes.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.5mm square

Current Rating:

2A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Entry Style:

Dual Entry (Bottom Entry, Top Entry)

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.137g

Overall Dimensions (L x W x D) in mm:

20.00 x 6.00 x 3.00

Height of Connector above PCB:

2.10mm

Availability

782 in stock
