M22-6360542R

5+5 Pos. Female DIL Vertical SMT Conn. (T+R)

2.00mm (0.079") Pitch PCB Connector - M22 Series

Order Sample

Add to Favorites

In stock Check availability

3 similar products View products

Traceparts account required

Product Description

Double Row Surface Mount, Dual (Top and Bottom) Entry – 10 contacts (5+5).
Gold finish on contact area, Tin finish on termination.
Packaged in Tape & Reel, with Pick & Place caps.

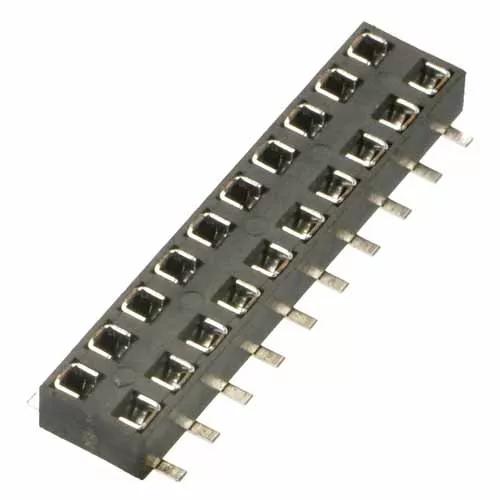

M22-6360542R - 5+5 Pos. Female DIL Vertical SMT Conn. (T+R)

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.5mm square

Current Rating:

2A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Dual Entry (Bottom Entry, Top Entry)

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Individual Part Weight:

0.177g

Overall Dimensions (L x W x D) in mm:

10.00 x 6.00 x 3.00

Height of Connector above PCB:

2.10mm
