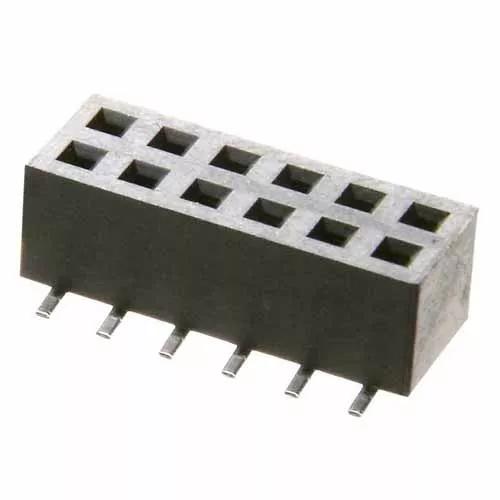

Image may be representative. Refer to the product title for more information.
Double Row Surface Mount, Dual (Top and Bottom) Entry - 34 contacts (17+17).
Gold finish on contact area, Tin finish on termination.
Packaged in tubes.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Product Change Notifications
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Entry Style
Dual Entry (Bottom Entry, Top Entry)
Mating Pin Size
0.5mm square
Number of Rows
2
Connector Orientation
Vertical
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
34
Operating Temperature
-40°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
2A per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
No
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 9T
Base Material of Contact
Phosphor Bronze
Flammability Rating
UL94V-0
Packaging Style
Tube
Finish / Plating on Termination
100% Tin over Nickel
Housing Colour
Black
Dimensions
Contact Pitch
2.00mm (0.079")
Weight
1.1g
Dimensions
34.50 x 6.20 x 4.30
Height of Connector above PCB
4.30mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M22-634.pdf
C018XX Component Specification - M22 Series (2.00mm pitch PCB connectors)
Product Information
Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
Product Datasheet - INDESS range: M20 and M22 (BBi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M22-634 series
RoHS Declaration - M22-6341742
