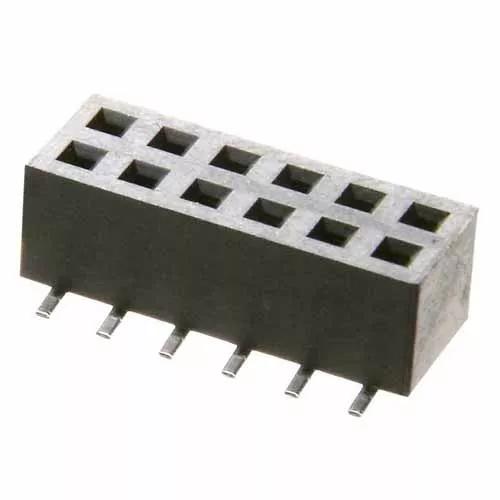

6+6 Pos. Female DIL Vertical SMT Conn.
2.00mm (0.079") Pitch PCB Connector - M22 Series
- Double Row Surface Mount, Dual (Top and Bottom) Entry – 12 contacts (6+6).
- Gold finish on contact area, Tin finish on termination.
- Packaged in tubes.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
2A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Dual Entry (Bottom Entry, Top Entry)
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 9T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
12.50 x 6.20 x 4.30
Height of Connector above PCB:
11,565 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
