M22-6043098

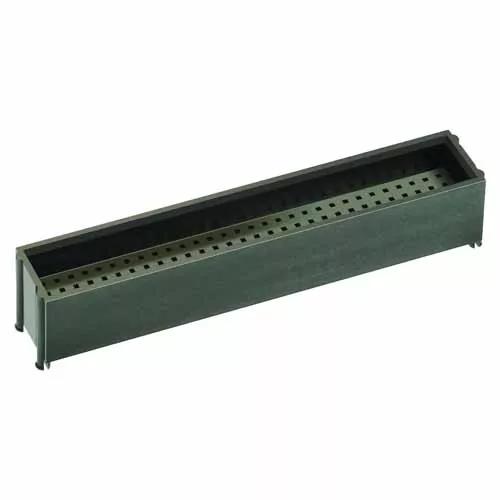

30 x 4-Row PC/104 Plus Shroud

2.00mm (0.079") Pitch PC/104 Plus Connector

  • Shroud for use with Stackthrough tails.
  • Suitable for use with Stackthrough connector M22-6003005.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Mating Pin Size:

0.5mm square

Operating Temperature:

-55°C to +105°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

4

Number of Signal Contacts:

120

Materials

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

5.645g

Overall Dimensions (L x W x D) in mm:

65.00 x 11.43 x 13.30

Height of Connector above PCB:

11.18mm

Availability

938 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 216
Distributor Anglia
Location Europe
Quantity (Updated Daily) 2

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 720

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M22-604.pdf

ZIP

M22-6043098 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C039XX Component Specification - PC/104 and PC/104 Plus Connectors

TEST REPORTS

PDF

Test Report HT029 - PC-104 and PC-104 Plus Environmental (Vibration)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for M22-6043098 product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the PC/104 (2.54mm pitch) and PC/104 Plus (2mm pitch) connectors
