M22-6013005

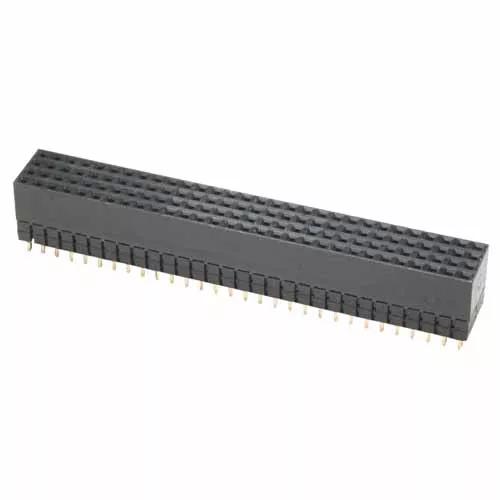

30 x 4-Row Female Vertical Throughboard Conn.

2.00mm (0.079") Pitch PC/104 Plus Connector

  • 2mm (0.079") Pitch 4 Row, with solder tails - Gold finish, 120 contacts (30 per row).

  • 2.3mm PC Tails.

  • Non-stackthrough tails, to finish at the bottom of a vertical bus stack.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Entry Style:

    Top Entry

  • Mating Pin Size:

    0.5mm square

  • Number of Rows:

    4

  • Connector Orientation:

    Vertical

  • Country of Origin:

    TW

  • Side Stackable:

    Yes

  • Number of Signal Contacts:

    120

  • Operating Temperature:

    -55°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    1A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    No

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    Polyamide (Nylon) 6T

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.00mm (0.079")

  • Weight:

    9.422g

  • Dimensions:

    60.20 x 8.00 x 11.63

  • PC Tail Length:

    2.28mm

  • Height of Connector above PCB:

    9.35mm

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - M22-601.pdf

  • C039XX Component Specification - PC/104 and PC/104 Plus Connectors

  • Outgassing data for Harwin products (plastics)

    • Product Information

  • Product Training Module - Overview of the PC/104 (2.54mm pitch) and PC/104 Plus (2mm pitch) connectors

  • Product Datasheet - INDESS range: M20 and M22 (BBi)

    • Test Reports

  • Test Report HT029 - PC-104 and PC-104 Plus Environmental (Vibration)

    • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Material composition for M22-601 series

  • RoHS - M22-6013005
