Home > M22-6003005
Active Product

M22-6003005

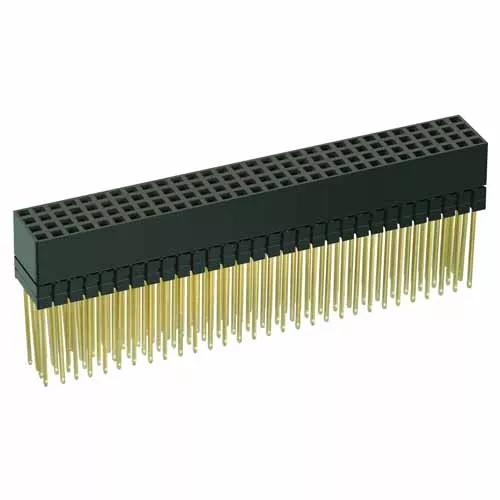

30 x 4-Row Female Vertical Stackthrough Conn.

2.00mm (0.079") Pitch PC/104 Plus Connector

Add to Favorites

350 in stock   Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • 2mm (0.079″) Pitch 4 Row, with solder tails – Gold finish, 120 contacts (30 per row).
  • 12mm stackthrough tails.
  • Tails will mate with another PC/104 Plus connector on the underside of the PCB.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.5mm square

Current Rating:

1A max per contact

Operating Temperature:

-55°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

4

Number of Signal Contacts:

120

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

12.026g

Overall Dimensions (L x W x D) in mm:

60.20 x 8.00 x 21.34

Height of Connector above PCB:

9.35mm

Length of Throughboard Tail:

11.99mm
