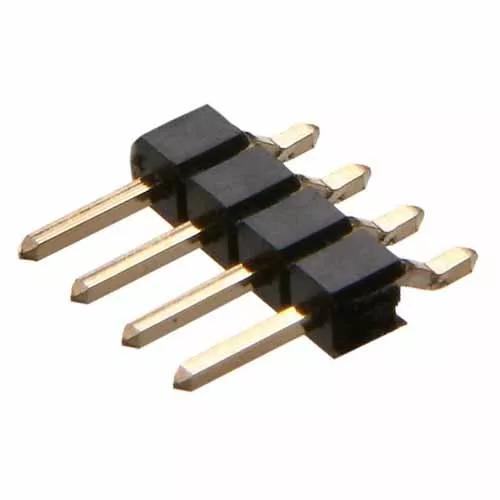

Image may be representative. Refer to the product title for more information.
2mm (.079") pitch male plug Single Row right-angle (horizontal), surface mount connector - 3 contacts.
4.2mm mating pin length. Suitable for mating with female receptacle cable housings M22-301 and associated crimp contacts M22-304 or M22-305 product families.
Gold finish on contact area and termination. Packaged loose in bags.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
Supplyframe
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Mating Pin Size
0.5mm square
Number of Rows
1
Connector Orientation
Right-Angle
Country of Origin
CN
Side Stackable
No
Number of Signal Contacts
3
Operating Temperature
-40°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
2A per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
No
Cuttable
Yes
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 9T
Base Material of Contact
Brass
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Finish / Plating on Termination
Gold
Housing Colour
Black
Dimensions
Contact Pitch
2.00mm (0.079")
Weight
0.082g
Dimensions
6.00 x 9.00 x 2.00
Height of Connector above PCB
2.00mm
