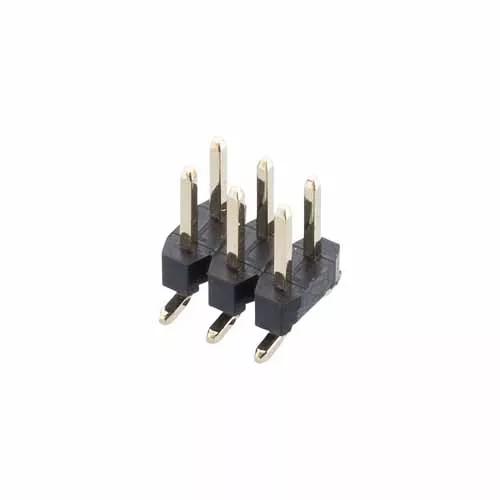

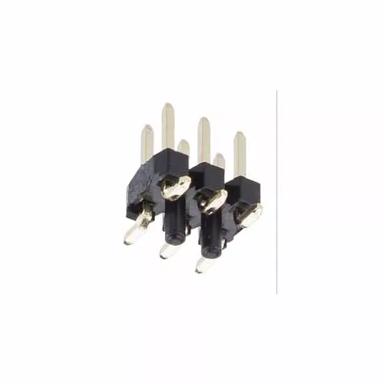

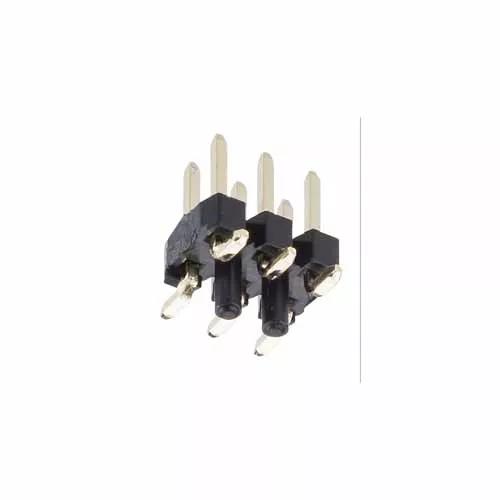

3+3 Pos. Male DIL Vertical SMT Conn.
2.00mm (0.079") Pitch PCB Connector - M22 Series
- Double Row Surface Mount with location pegs, 3.5mm mating pin height – 6 contacts (3+3).
- Gold finish on contact area and termination.
- Packaged loose.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
2A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
6.00 x 5.75 x 7.13
Height of Connector above PCB:
1,483 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
