Home > M22-3050046
Active

M22-3050046

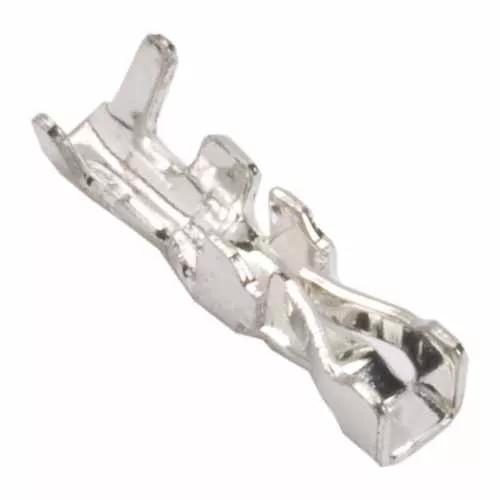

Female 24-30AWG Crimp Contact, loose

2.00mm (0.079") Pitch PCB Connector - M22 Series

  • Loose female crimp contacts – Tin finish contact area.
  • Suitable for cable conductor sizes from 24 to 30AWG.
  • Use with crimp housings M22-301 and M22-302 series.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

24-30AWG

Mating Pin Size:

0.5mm square

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.045g

Overall Dimensions (L x W x D) in mm:

6.00 x 1.90 x 1.65

Availability

15,545 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Anglia
Location Europe
Quantity (Updated Daily) 8460
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 4000
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 3025
Distributor Farnell
Location Europe
Quantity (Updated Daily) 40
Distributor Newark
Location USA
Quantity (Updated Daily) 20

Questions & Answers Ask a Question

Which crimp tool is recommended for crimping these contacts in low quantities?

Crimp tool Z22-020 is supplied for low-volume crimping. You can see it listed under Related Products further down the page.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M22-305.pdf

ZIP

M22-3050046 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C018XX Component Specification - M22 Series (2.00mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M22-305 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-05 - Z22-020 Hand Crimp Tool Instruction Sheet
