M22-3010500

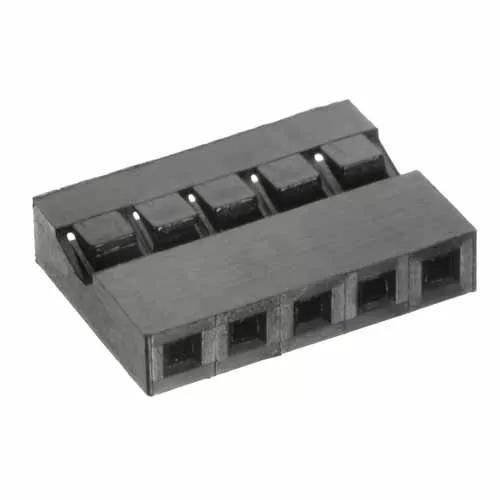

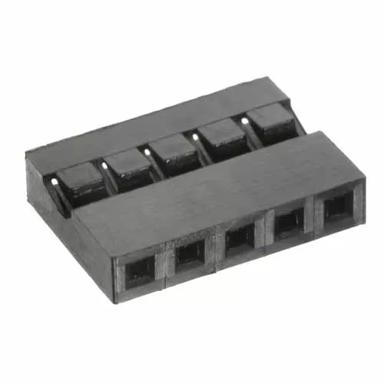

5 Pos. Female SIL Cable Housing

2.00mm (0.079") Pitch PCB Connector - M22 Series

Add to Favorites

10,895 in stock   Check availability

2 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

0.5mm square

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

5

Materials

Housing Material:

Polyamide (Nylon) 66

Housing Colour:

Black

Housing Material UL Rating:

UL94V-2

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.084g

Overall Dimensions (L x W x D) in mm:

10.30 x 2.00 x 7.20

Frequently Asked Questions Ask a Question

Is this connector available polarized, or are polarization plugs available separately?

There are polarizing plugs available separately for this connector – part number M22-0340000. It is listed further down the page, under “Related Products” as an accessory. To use this polarizing plug, you will also need to manually remove the associated male pin to be able to mate the connectors.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
