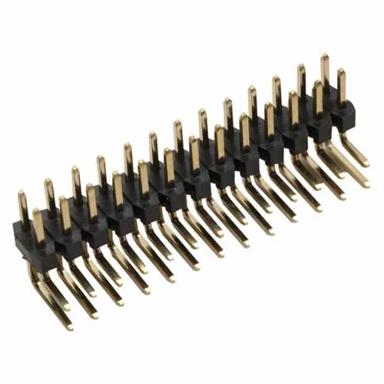

Double Row, 2.4mm PC Tail, 3.5mm mating pin length - 18 contacts (9+9).
Gold finish on contact area and termination.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Mating Pin Size
0.5mm square
Number of Rows
2
Connector Orientation
Horizontal
Country of Origin
CN
Side Stackable
No
Number of Signal Contacts
18
Operating Temperature
-40°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
2A per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
No
Cuttable
Yes
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 6T
Base Material of Contact
Phosphor Bronze
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Finish / Plating on Termination
Gold
Housing Colour
Black
Dimensions
Contact Pitch
2.00mm (0.079")
Weight
0.552g
Dimensions
18.00 x 9.75 x 6.40
PC Tail Length
2.40mm
Height of Connector above PCB
4.00mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M22-254.pdf
C018XX Component Specification - M22 Series (2.00mm pitch PCB connectors)
Outgassing data for Harwin products (plastics)
Product Information
Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
Product Datasheet - INDESS range: M20 and M22 (BBi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M22-254 series
RoHS Declaration - M22-2540905
