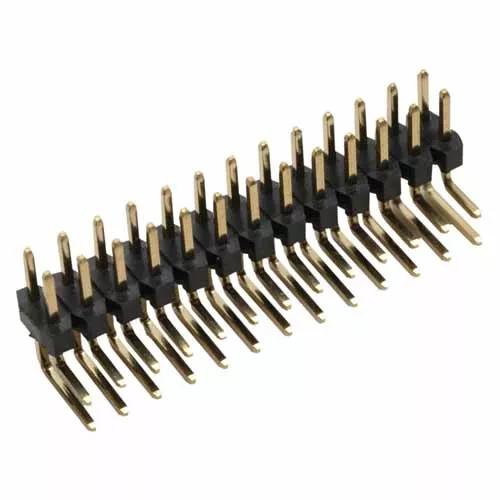

Product Characteristics
End Stackable:
No
Mating Pin Size:
0.5mm square
Number of Rows:
2
Connector Orientation:
Horizontal
Country of Origin:
TW
Side Stackable:
No
Number of Signal Contacts:
8
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
2A per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
No
Cuttable:
Yes
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 6T
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
0.245g
Dimensions:
8.00 x 9.75 x 6.40
PC Tail Length:
2.40mm
Height of Connector above PCB:
4.00mm
Downloads
Technical Drawing / Datasheet - M22-254.pdf
C018XX Component Specification - M22 Series (2.00mm pitch PCB connectors)
Outgassing data for Harwin products (plastics)
Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
Product Datasheet - INDESS range: M20 and M22 (BBi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M22-254 series
RoHS - M22-2540405
