M22-2521405

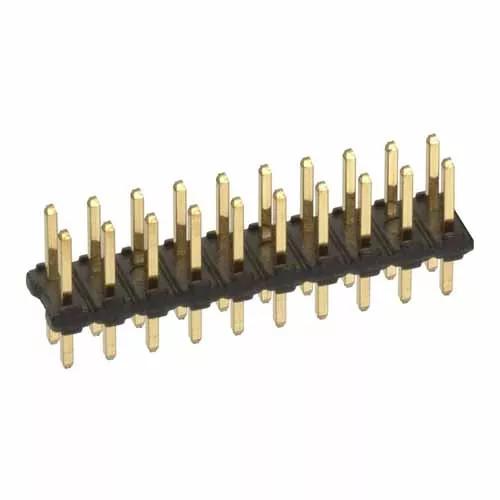

14+14 Pos. Male DIL Vertical Throughboard Conn.
2.00mm (0.079") Pitch PCB Connector - M22 Series
1,291 in stock Check availability
6 similiar products View products
Samacsys account required
No login is required
Product Description
- Double Row, 2.3mm PC Tail, 3.5mm mating pin height – 28 contacts (14+14).
- Gold finish on contact area and termination.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
0.5mm square
Current Rating:
2A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
Yes
Can be cut to another size:
Yes
Number of Rows:
2
Number of Signal Contacts:
28
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 6T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.622g
Overall Dimensions (L x W x D) in mm:
28.00 x 4.00 x 7.30
Height of Connector above PCB:
5.00mm
Length of Throughboard Tail:
2.30mm
Frequently Asked Questions Ask a Question
How do I cut down this pin header?
Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00 – it was designed for 2.54mm pitch, but can work on 2mm. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.
