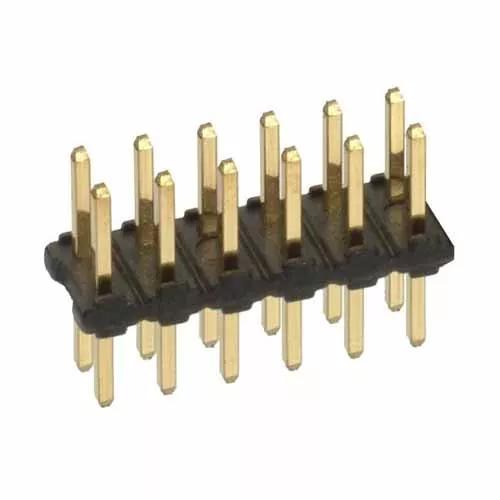

8+8 Pos. Male DIL Vertical Throughboard Conn.
2.00mm (0.079") Pitch PCB Connector - M22 Series
- Double Row, 3.4mm PC Tail, 3.5mm mating pin height – 16 contacts (8+8).
- Gold finish on contact area and termination.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
2A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
16.00 x 4.00 x 8.40
Height of Connector above PCB:
Length of Throughboard Tail:
4,288 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
