M22-2020405

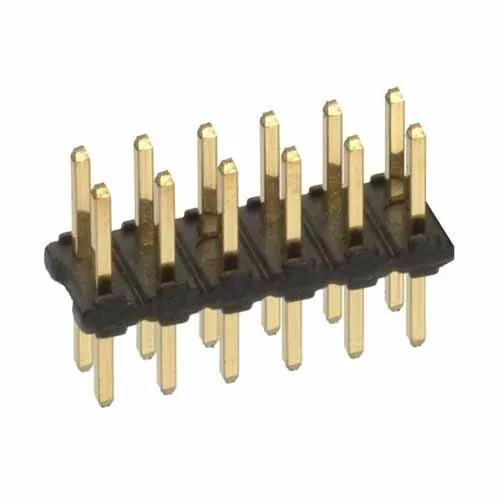

2.00mm (0.079") Pitch DIL Vertical 3.5mm Throughboard Pin Header, 3.5mm mating pin height, gold, 4+4 contacts


2.00mm (0.079") Pitch PCB Connector - M22 Series

  • Double Row, 3.4mm PC Tail, 3.5mm mating pin height - 8 contacts (4+4).

  • Gold finish on contact area and termination.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Technical Details

Specifications

  • Contact Pitch:

    2.00mm (0.079")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    PC Tail / Throughboard

  • Mating Pin Size:

    0.5mm square

  • End Stackable:

    No

  • Side Stackable:

    Yes

  • Number of Rows:

    2

  • Number of Signal Contacts:

    8

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Phosphor Bronze

  • Housing Material:

    Polyamide (Nylon) 6T

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Height of Connector above PCB:

    5.00mm

  • PC Tail Length:

    3.40mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    PC Tail / Throughboard

  • Current Rating:

    2A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    0.19g

  • Dimensions:

    8.00 x 4.00 x 8.40

  • Operating Temperature:

    -40°C to +105°C

Downloads

    Environmental Compliance

  • RoHS - M22-2020405

  • Material composition for M22-202 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M22-202.pdf

  • C018XX Component Specification - M22 Series (2.00mm pitch PCB connectors)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

  • Product Datasheet - INDESS range: M20 and M22 (BBi)
