M22-1910046

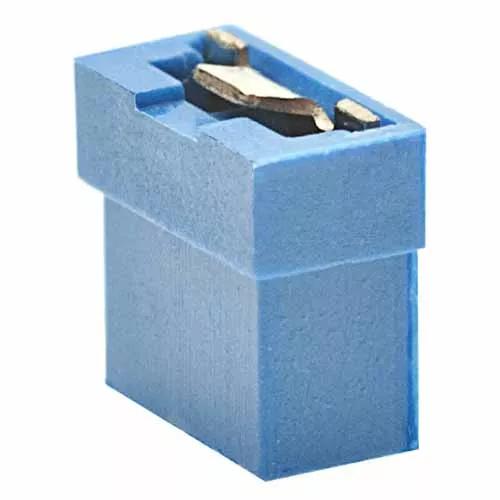

2.00mm (0.079") Pitch Open Top Jumper Socket, blue, tin


2.00mm (0.079") Pitch PCB Connector - M22 Series

  • Open Top jumper socket or shunt, Blue housing color, Tin finish.

  • High-Reliability Multi-Usage, up to 50 operations.

  • Alternative programming method to DIP switches.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    Yes

  • Mating Pin Size:

    0.5mm square

  • Number of Rows:

    1

  • Connector Orientation:

    Vertical

  • Country of Origin:

    GB

  • Side Stackable:

    Yes

  • Number of Signal Contacts:

    2

  • Operating Temperature:

    -40°C to +85°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    2A max at 25°C

  • Polarised:

    No

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    100% Tin over Nickel

  • Housing Material:

    PBT

  • Base Material of Contact:

    Beryllium Copper

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Blue

Dimensions

  • Contact Pitch:

    2.00mm (0.079")

  • Weight:

    0.07g

  • Dimensions:

    3.85 x 1.93 x 3.45

Downloads

    Product Information

  • Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

  • Product Datasheet - INDESS range: M20 and M22 (BBi)

  • Technical Documentation

  • Technical Drawing / Datasheet - M22-19X.pdf

  • C013XX Component Specification - M22-19X Series (2.00mm pitch Jumper Sockets)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - M22-1910046

  • Material composition for M22-19X series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
