M22-0340000
2.00mm (0.079") Pitch PCB Connector - M22 Series

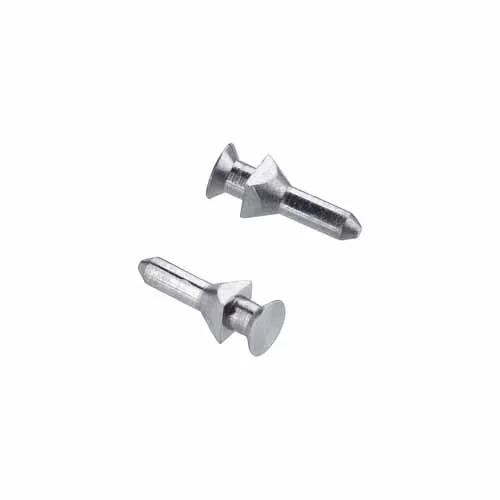

Polarizing Key, for 2.00mm (0.079") pitch female connectors.
Suitable for use in the following products: M22-301, M22-302, M22-713 and M22-714 series.
Remove the equivalent pin from the mating connector.
View Technical Details
In Stock
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Country of Origin:
GB
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Finish / Plating on Contact Surface:
Unplated
Base Material of Contact:
Stainless Steel
Packaging Style:
Bulk/Loose
Contact Pitch:
2.00mm (0.079")
Weight:
0.007g
Dimensions:
2.60 x Ø1.00
