M20-9970345

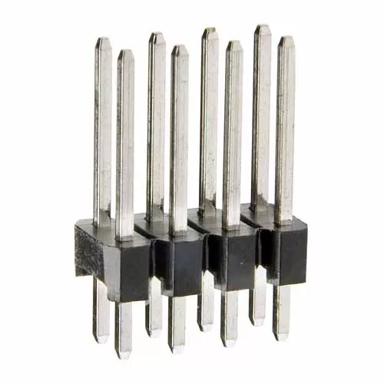

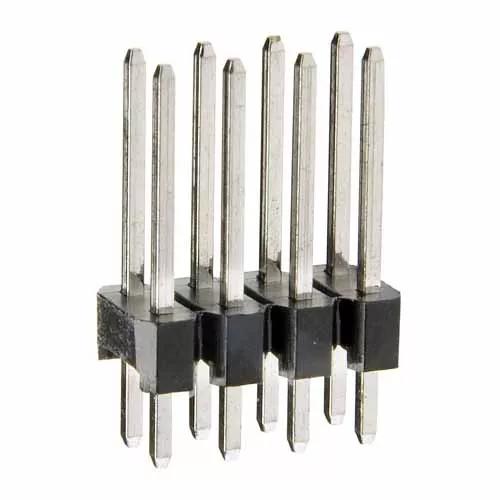

3+3 Pos. Male DIL Vertical Throughboard Conn.
2.54mm (0.1") Pitch PCB Connector - M20 Series
5,594 in stock Check availability
2 similiar products View products
Samacsys account required
No login is required
Product Description
- Double Row, 3mm PC Tail, 8.5mm mating pin length (for Bottom Entry applications) – 6 contacts (3+3).
- Gold finish on contact area and termination.
- Can be cut to a smaller number of contacts using the M20 Hand Cutting Tool Z1022-00.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.54mm (0.1")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
0.64mm square
Current Rating:
3A max per contact
Polarising Features:
No
End Stackable:
No
Side Stackable:
Yes
Can be cut to another size:
Yes
Number of Rows:
2
Number of Signal Contacts:
6
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Housing Material:
Polyamide (Nylon) 6T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.416g
Overall Dimensions (L x W x D) in mm:
7.62 x 5.08 x 14.00
Height of Connector above PCB:
11.04mm
Length of Throughboard Tail:
2.96mm
Frequently Asked Questions Ask a Question
How do I cut down this pin header?
Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.
