M20-9952545

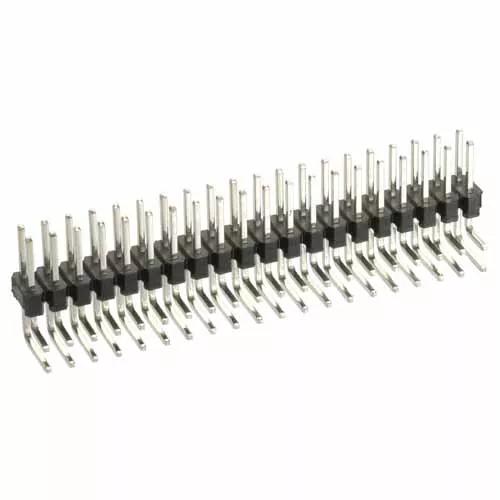

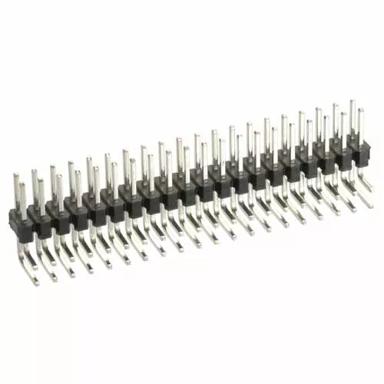

25+25 Pos. Male DIL Horizontal Throughboard Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Double Row, 3mm PC Tail, 6.1mm mating pin length – 50 contacts (25+25).
  • Gold finish on contact area and termination.
  • Can be cut to a smaller number of contacts using the M20 Hand Cutting Tool Z1022-00.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.64mm square

Current Rating:

3A max per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

2

Number of Signal Contacts:

50

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

3.78g

Overall Dimensions (L x W x D) in mm:

63.50 x 13.76 x 8.08

Height of Connector above PCB:

5.08mm

Length of Throughboard Tail:

3.00mm

Availability

1,525 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 800
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 575
Distributor Genalog
Location Europe
Quantity (Updated Daily) 150

Questions & Answers Ask a Question

How do I cut down this pin header?

Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.
