  • M20-9951046 - 10+10 Pos. Male DIL Horizontal Throughboard Conn.

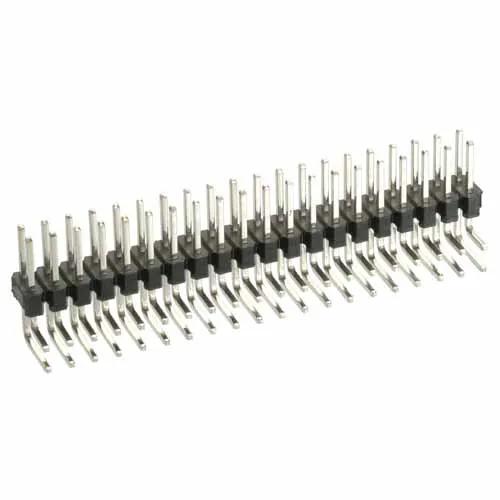

Representative image of product family.

M20-9951046

10+10 Pos. Male DIL Horizontal Throughboard Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Double Row, 3mm PC Tail, 6.1mm mating pin length - 20 contacts (10+10).
  • Tin finish on contact area and termination.
  • Can be cut to a smaller number of contacts using the M20 Hand Cutting Tool Z1022-00.

Active

Limited availability or made-to-order (check alternatives for popular products)

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Mouser Electronics Inc Global 710 Buy Now

Product Information

Specification

+
Product Type: 2.54mm (0.1") Pitch PCB Connector - M20 Series
Contact Pitch: 2.54mm (0.1")
Contact Gender: Male/Plug
Connector Orientation: Horizontal
Connection Type: PC Tail / Throughboard
Mating Pin Size: 0.64mm square
Current Rating: 3A
Operating Temperature: -40°C to +105°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: 100% Tin over Nickel
Base Material of Contact: Brass
Housing Material: Polyamide (Nylon) 6T
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.53g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 20
Height of Connector above PCB: 2.5mm
End Stackable: No
Side Stackable: No
Polarising Features: No
Can be cut to another size: Yes
Length of PC Tail: 3mm
Mating Profiles/Heights

Related Products

+
Product Family: M20-995

Mating Products

Previous Next

Alternative products

M20-9951045 - 10+10 Pos. Male DIL Horizontal Throughboard Conn.

Closest alternative:

M20-9951045

10+10 Pos. Male DIL Horizontal Throughboard Conn.
