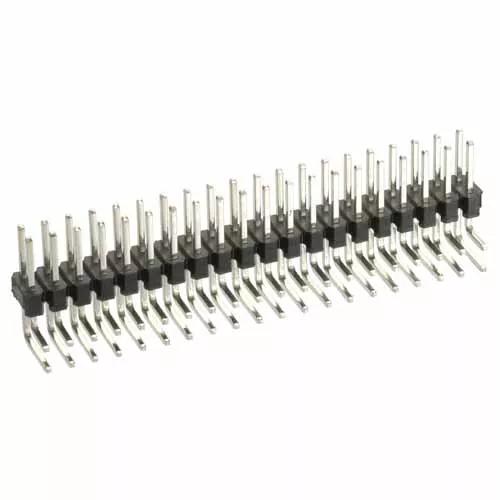

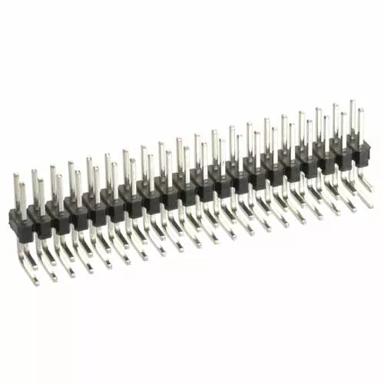

10+10 Pos. Male DIL Horizontal Throughboard Conn.
2.54mm (0.1") Pitch PCB Connector - M20 Series
- Double Row, 3mm PC Tail, 6.1mm mating pin length – 20 contacts (10+10).
- Gold finish on contact area and termination.
- Can be cut to a smaller number of contacts using the M20 Hand Cutting Tool Z1022-00.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
25.40 x 13.76 x 8.08
Height of Connector above PCB:
Length of Throughboard Tail:
AvailabilityLimited availability or made-to-order
*Stock available: contact distributor to purchase
Questions & Answers Ask a Question
How do I cut down this pin header?
Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.
Was this answer helpful?
64% found this helpful
M20-9951045 CAD Model (ZIP file containing STP and IGES)Download
