M20-9770446

4 Pos. Male SIL Vertical Throughboard Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

Order Sample

Add to Favorites

In stock Check availability

4 similar products View products

Traceparts account required

Product Description

Single Row 3mm PC Tail, 5.8mm mating pin length – 4 contacts.
Tin finish on contact area and termination.
Can be cut to a smaller number of contacts using the M20 Hand Cutting Tool Z1022-00.

M20-9770446 - 4 Pos. Male SIL Vertical Throughboard Conn.

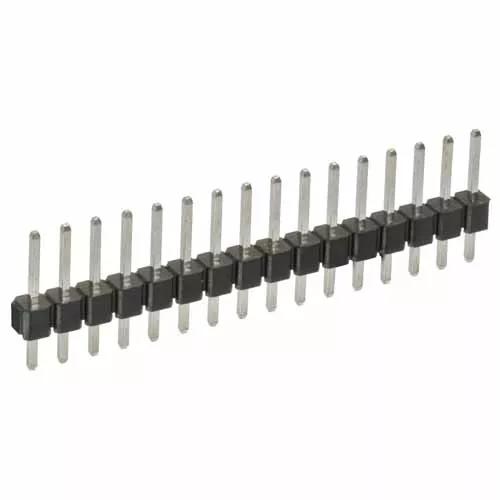

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.64mm square

Current Rating:

3A max per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Yes

Can be cut to another size:

Yes

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.211g

Overall Dimensions (L x W x D) in mm:

10.16 x 2.54 x 11.44

Height of Connector above PCB:

8.34mm

Length of Throughboard Tail:

3.10mm

Frequently Asked Questions Ask a Question

Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.
