Home > M20-9741042
Active

M20-9741042

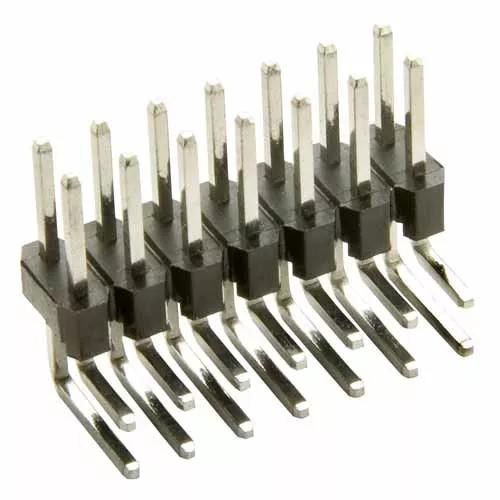

10+10 Pos. Male DIL Horizontal Throughboard Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Double Row, 3mm PC Tail, 5.8mm mating pin length – 20 contacts (10+10).
  • Gold finish on contact area, Tin finish on termination.
  • Can be cut to a smaller number of contacts using the M20 Hand Cutting Tool Z1022-00.

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.64mm square

Current Rating:

3A

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

Yes

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.52g

Overall Dimensions (L x W x D) in mm:

25.40 x 12.56 x 8.08

Height of Connector above PCB:

5.08mm

Length of Throughboard Tail:

3.00mm

Availability

Distributor Location Quantity
Mouser Electronics Inc
Global
Status1396

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

How do I cut down this pin header?

Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.

Was this helpful?

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M20-974.pdf

ZIP

M20-9741042 CAD Model (ZIP file containing STP)

PDF

C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (24-Jul-2019) including 201 SVHC (16-Jul-2019), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for M20-974 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

OTHER DOWNLOADS

PDF

3D PDF file - M20-9741042_3D.pdf

PDF

Catalog page - M20 Male DIL Horizontal PC Tail

PDF

Catalog page - M20 Connectors Specification

PDF

Catalog page - M20 Connectors Mating Profiles
