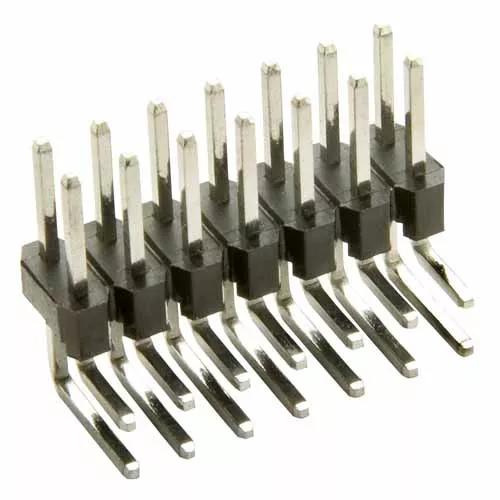

Image may be representative. Refer to the product title for more information.
Double Row, 3mm PC Tail, 5.8mm mating pin length - 14 contacts (7+7).
Tin finish on contact area and termination.
Can be cut to a smaller number of contacts using the M20 Hand Cutting Tool Z1022-00.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Mating Pin Size
0.64mm square
Number of Rows
2
Connector Orientation
Horizontal
Country of Origin
CN
Side Stackable
Yes
Number of Signal Contacts
14
Operating Temperature
-40°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
3A max per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
No
Cuttable
Yes
Materials
Finish / Plating on Contact Surface
100% Tin over Nickel
Housing Material
Polyamide (Nylon) 6T
Base Material of Contact
Brass
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Finish / Plating on Termination
100% Tin over Nickel
Housing Colour
Black
Dimensions
Contact Pitch
2.54mm (0.1")
Weight
1.072g
Dimensions
17.78 x 12.56 x 8.08
PC Tail Length
3.00mm
Height of Connector above PCB
5.08mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M20-974.pdf
C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)
Outgassing data for Harwin products (plastics)
Product Information
Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
Product Datasheet - INDESS range: M20 and M22 (BBi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M20-974 series
RoHS Declaration - M20-9740746
