Home > M20-9730946
Active

M20-9730946

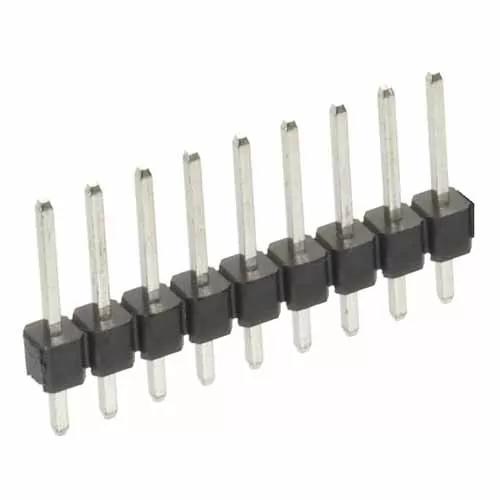

9 Pos. Male SIL Vertical Throughboard Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Single Row 3mm PC Tail, 7mm mating pin length – 9 contacts.
  • Tin finish on contact area and termination.
  • Can be cut to a smaller number of contacts using the M20 Hand Cutting Tool Z1022-00.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.64mm square

Current Rating:

3A max per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

Yes

Number of Rows:

1

Number of Signal Contacts:

9

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.54g

Overall Dimensions (L x W x D) in mm:

22.86 x 2.54 x 12.64

Height of Connector above PCB:

9.54mm

Length of Throughboard Tail:

3.10mm

Availability

Limited availability or made-to-order
Distributor Location Quantity
Genalog
Europe
Status3616
Mouser Electronics Inc
Global
Status1957

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

How do I cut down this pin header?

Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M20-973.pdf

ZIP

M20-97309xx CAD Model (ZIP file containing STP)

Download
PDF

C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M20-973 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
