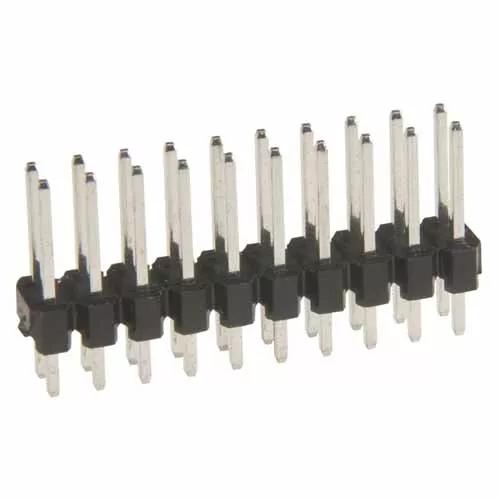

12+12 Pos. Male DIL Vertical Throughboard Conn.
2.54mm (0.1") Pitch PCB Connector - M20 Series
Samacsys account required
No login is required
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
3A max per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
30.48 x 5.08 x 12.64
Height of Connector above PCB:
Length of Throughboard Tail:
Frequently Asked Questions Ask a Question
How do I cut down this pin header?
Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
