  • M20-9721045 - 10+10 Pos. Male DIL Vertical Throughboard Conn.

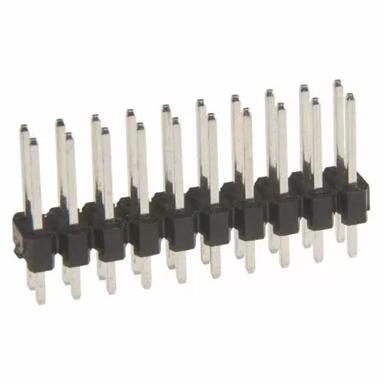

Representative image of product family.

M20-9721045

10+10 Pos. Male DIL Vertical Throughboard Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Double Row, 3mm PC Tail, 7mm mating pin length - 20 contacts (10+10).
  • Gold finish on contact area and termination.
  • Can be cut to a smaller number of contacts using the M20 Hand Cutting Tool Z1022-00.

Active

Limited availability or made-to-order (check alternatives for popular products)

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Information

Specification

+
Product Type: 2.54mm (0.1") Pitch PCB Connector - M20 Series
Contact Pitch: 2.54mm (0.1")
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: PC Tail / Throughboard
Mating Pin Size: 0.64mm square
Current Rating: 3A
Operating Temperature: -40°C to +105°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: Gold
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Brass
Housing Material: Polyamide (Nylon) 6T
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.188g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 20
Height of Connector above PCB: 9.5mm
End Stackable: No
Side Stackable: Yes
Polarising Features: No
Can be cut to another size: Yes
Length of PC Tail: 3mm
Mating Profiles/Heights
