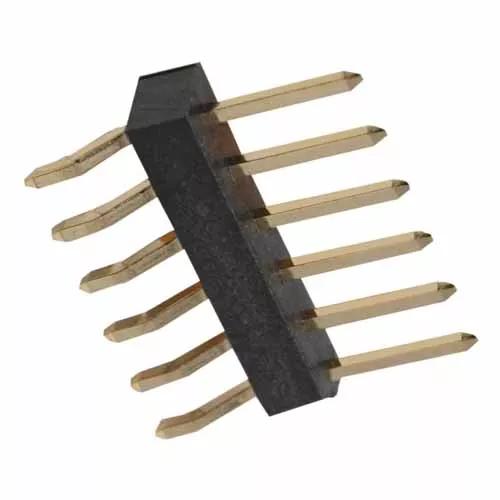

11 Pos. Male SIL Horizontal SMT Conn.
2.54mm (0.1") Pitch PCB Connector - M20 Series
- Single Row Surface Mount, 6.0mm mating pin, 3.46mm molding profile – 11 contacts.
- Gold finish on contact area and termination.
- Packaged loose.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
3A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
27.94 x 13.20 x 3.46
Height of Connector above PCB:
1,537 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
