M20-8900905

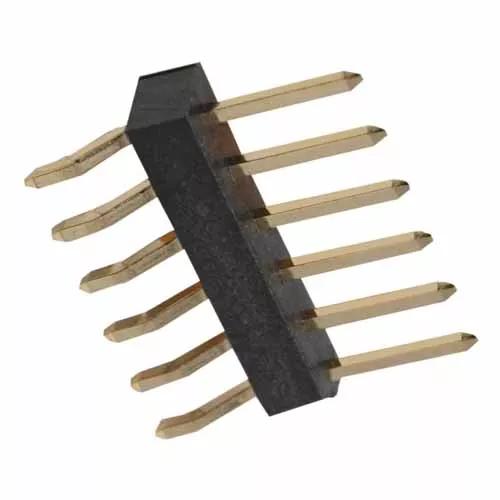

9 Pos. Male SIL Horizontal SMT Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Single Row SMT, 6.0mm mating pin, 3.46mm molding profile – 9 contacts.
  • Gold finish on contact area and termination.
  • Packaged loose.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.64mm square

Current Rating:

3A

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

1

Number of Signal Contacts:

9

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

2.022g

Overall Dimensions (L x W x D) in mm:

22.86 x 13.20 x 3.46

Height of Connector above PCB:

3.46mm

Availability

Limited availability or made-to-order
Distributor Location Quantity
Mouser Electronics Inc
Global
Status2073

*Stock available: contact distributor to purchase
