M20-8891045

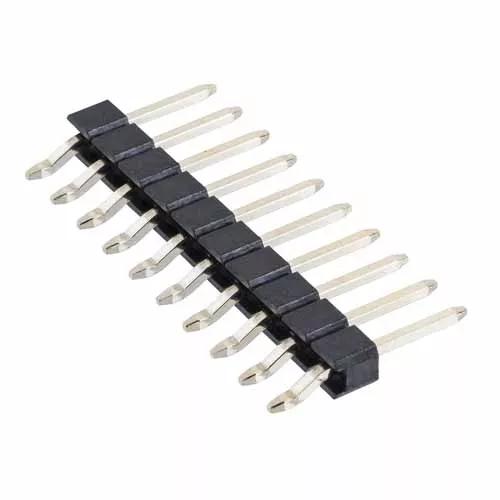

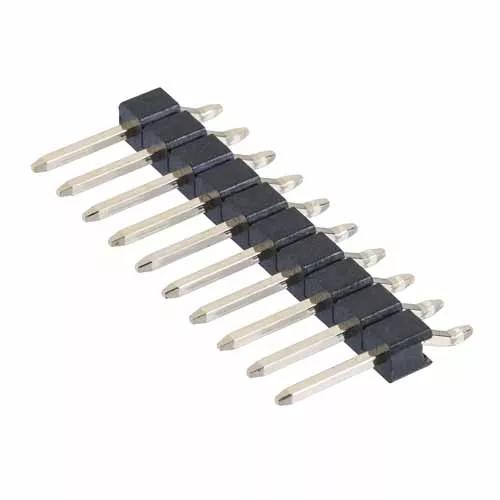

10 Pos. Male SIL Horizontal SMT Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Single Row SMT, 6.0mm mating pin, 2.5mm molding profile – 10 contacts.
  • Gold finish on contact area and termination.
  • Packaged in tubes.

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.64mm square

Current Rating:

3A

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

1

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.577g

Overall Dimensions (L x W x D) in mm:

25.40 x 11.50 x 2.50

Height of Connector above PCB:

2.50mm

Availability

Distributor Location Quantity
Digi-Key
Global
Status3895
Harwin
Europe
Status2508
Mouser Electronics Inc
Global
Status219

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

How do I cut down this pin header?

Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.
