Home > M20-8890845
Active Product

M20-8890845

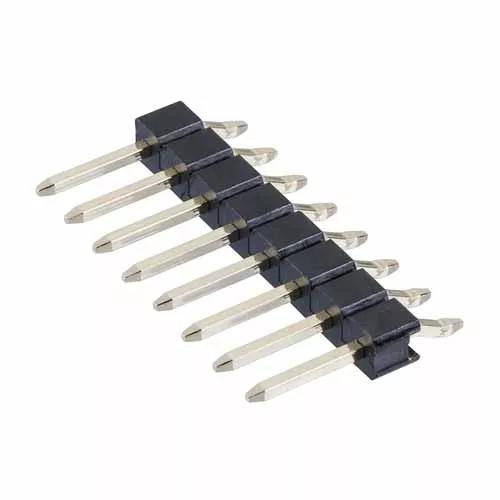

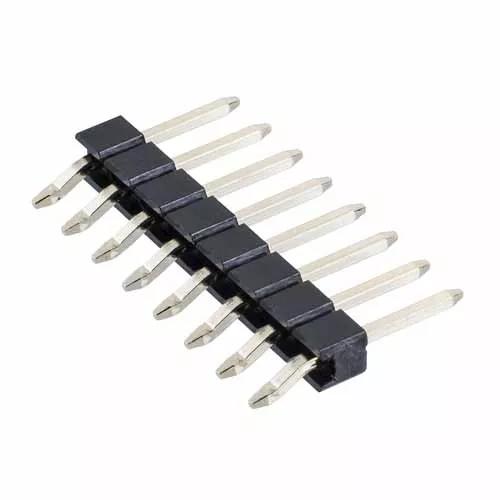

8 Pos. Male SIL Horizontal SMT Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

Add to Favorites

Loading…   Check availability

6 similar products View products

Traceparts account required

Product Description

  • Single Row Surface Mount, 6.0mm mating pin, 2.5mm molding profile – 8 contacts.
  • Gold finish on contact area and termination.
  • Packaged in tubes.

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

1

Number of Signal Contacts:

8

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.462g

Overall Dimensions (L x W x D) in mm:

20.32 x 11.50 x 2.50

Height of Connector above PCB:

2.50mm
