M20-8890545

M20-8890545

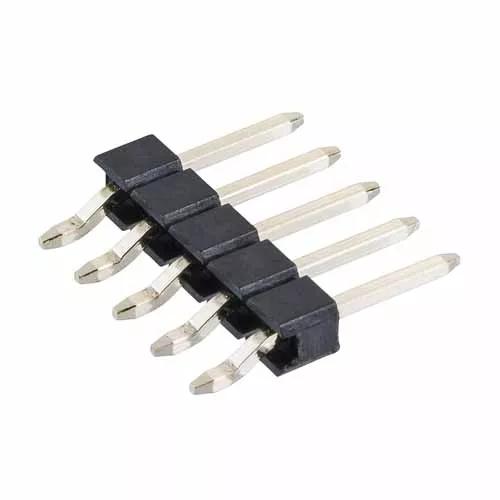

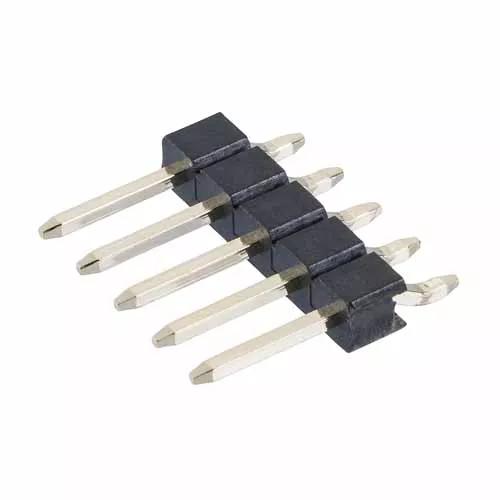

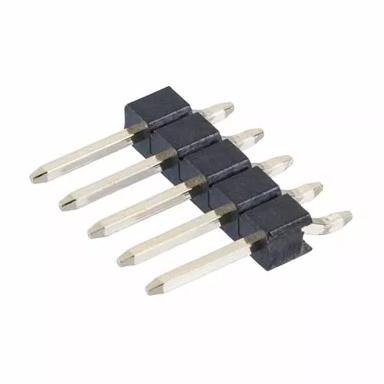

2.54mm (0.1") Pitch SIL SMT Horizontal Pin Header, 2.5mm housing height, gold, 5 contacts

BBi
BBi
BBi
BBi

Traceparts account required

M20-8890545

2.54mm (0.1") Pitch SIL SMT Horizontal Pin Header, 2.5mm housing height, gold, 5 contacts


2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Single Row Surface Mount, 6.0mm mating pin, 2.5mm molding profile - 5 contacts.

  • Gold finish on contact area and termination.

  • Packaged in tubes.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Technical Details

Specifications

  • Contact Pitch:

    2.54mm (0.1")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Horizontal

  • PCB Mounting:

    Surface Mount (SMT)

  • Mating Pin Size:

    0.64mm square

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    1

  • Number of Signal Contacts:

    5

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Brass

  • Housing Material:

    Polyamide (Nylon) 9T

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Height of Connector above PCB:

    2.50mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Surface Mount (SMT)

  • Current Rating:

    3A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    0.289g

  • Dimensions:

    12.70 x 11.50 x 2.50

  • Operating Temperature:

    -40°C to +105°C

Downloads

    Environmental Compliance

  • M20-8890545

  • M20-8890545R

  • Material composition for M20-889 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M20-889.pdf

  • C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Product Datasheet - INDESS range: M20 and M22 (BBi)

  • Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
