M20-8890345

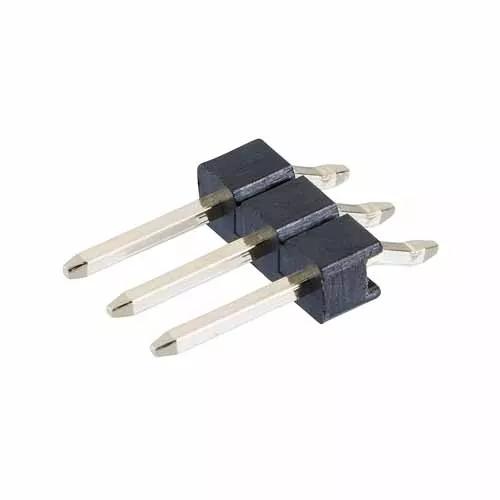

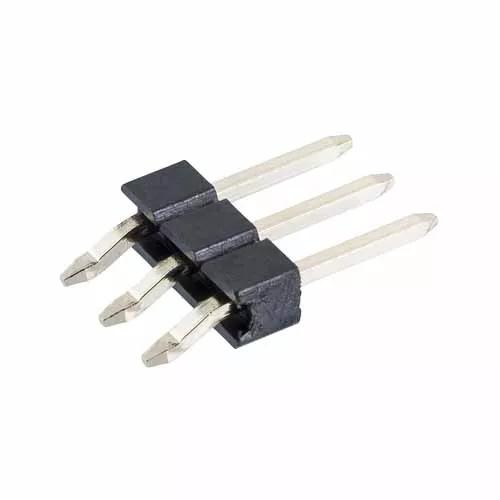

3 Pos. Male SIL Horizontal SMT Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

Order Sample

Add to Favorites

798 in stock Check availability

6 similiar products View products

Traceparts account required

Product Description

Single Row Surface Mount, 6.0mm mating pin, 2.5mm molding profile – 3 contacts.
Gold finish on contact area and termination.
Packaged in tubes.

M20-8890345 - 3 Pos. Male SIL Horizontal SMT Conn.

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Yes

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.173g

Overall Dimensions (L x W x D) in mm:

7.62 x 11.50 x 2.50

Height of Connector above PCB:

2.50mm

Frequently Asked Questions Ask a Question

Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.
